Note: Be sure to disconnect the vehicle power before installation.

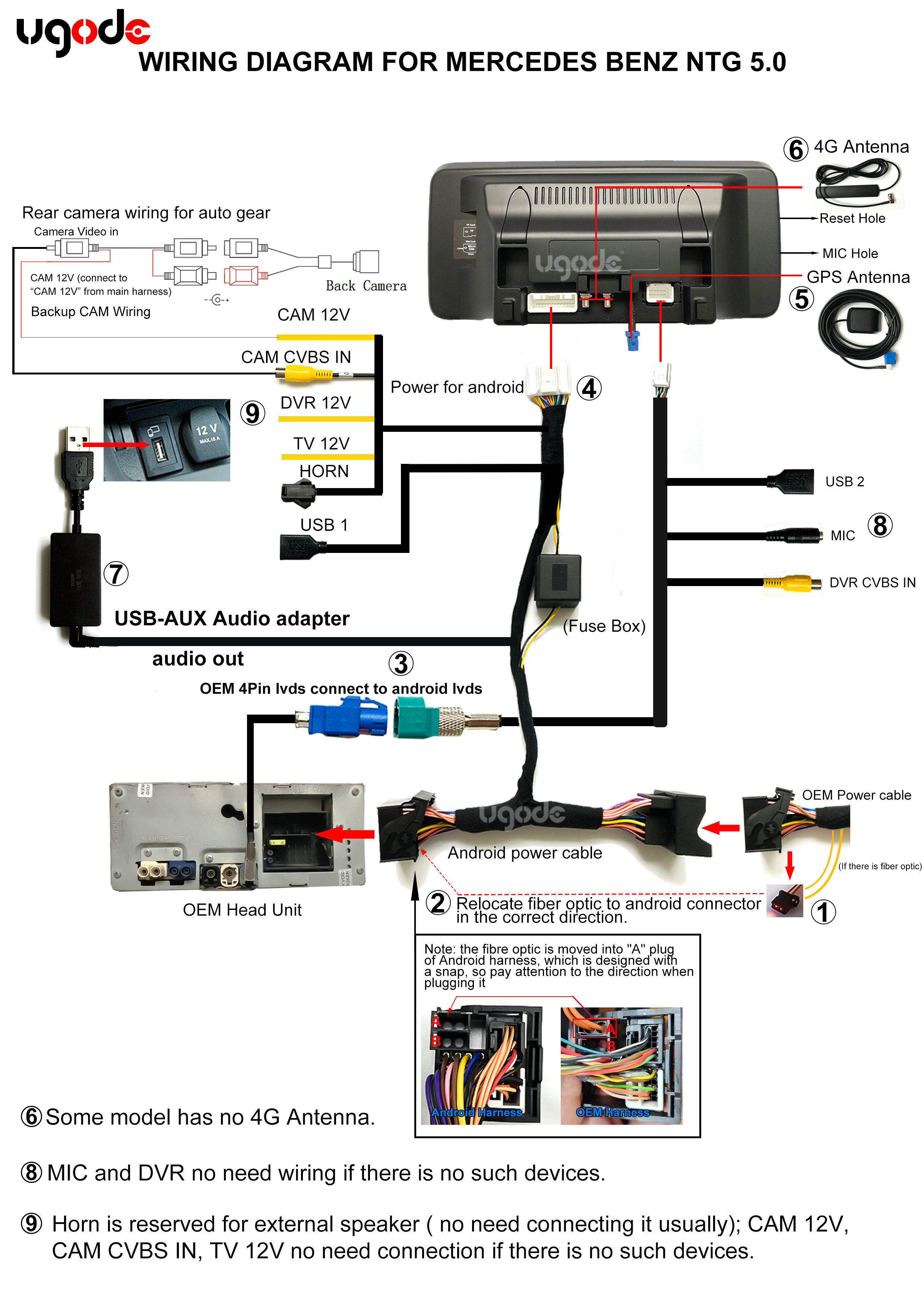

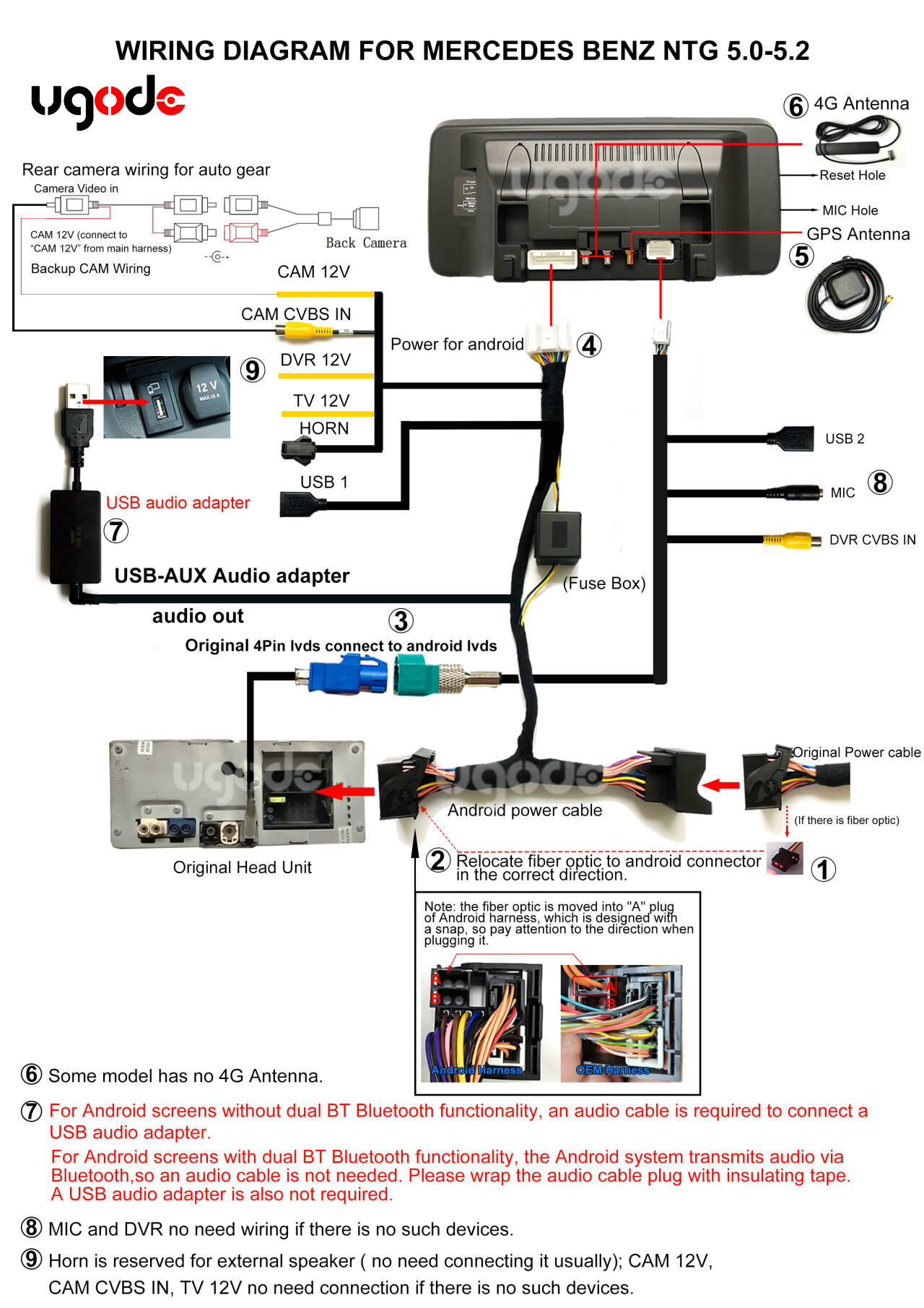

UGODE Android screen Mercedes-Benz NTG 5.0-5.2 Wiring Diagram
FAQ：
Q：My Android screen has dual Bluetooth functionality. How can I use Bluetooth to transmit audio?
A：Click here to view the solution.
Q：The reverse camera view cannot be activated when reversing.
A：Click here to view the solution.
Q：The original interface displays no signal.
A：Click here to view the solution.
Q：The original car system cannot be displayed correctly or flickers.
A：Click here to view the solution.
Q：There is no sound on the Android interface.
A：Click here to view the solution.
Q：Unable to recognize the USB-AUX audio adapter.
A：Click here to view the solution.
Q：The original knob does not work.
A：Click to view details.
Q：How to run navigation and the radio simultaneously.
A：Click here for solutions.
Post time: Nov-25-2025
