Note: Be sure to disconnect the vehicle power before installation.

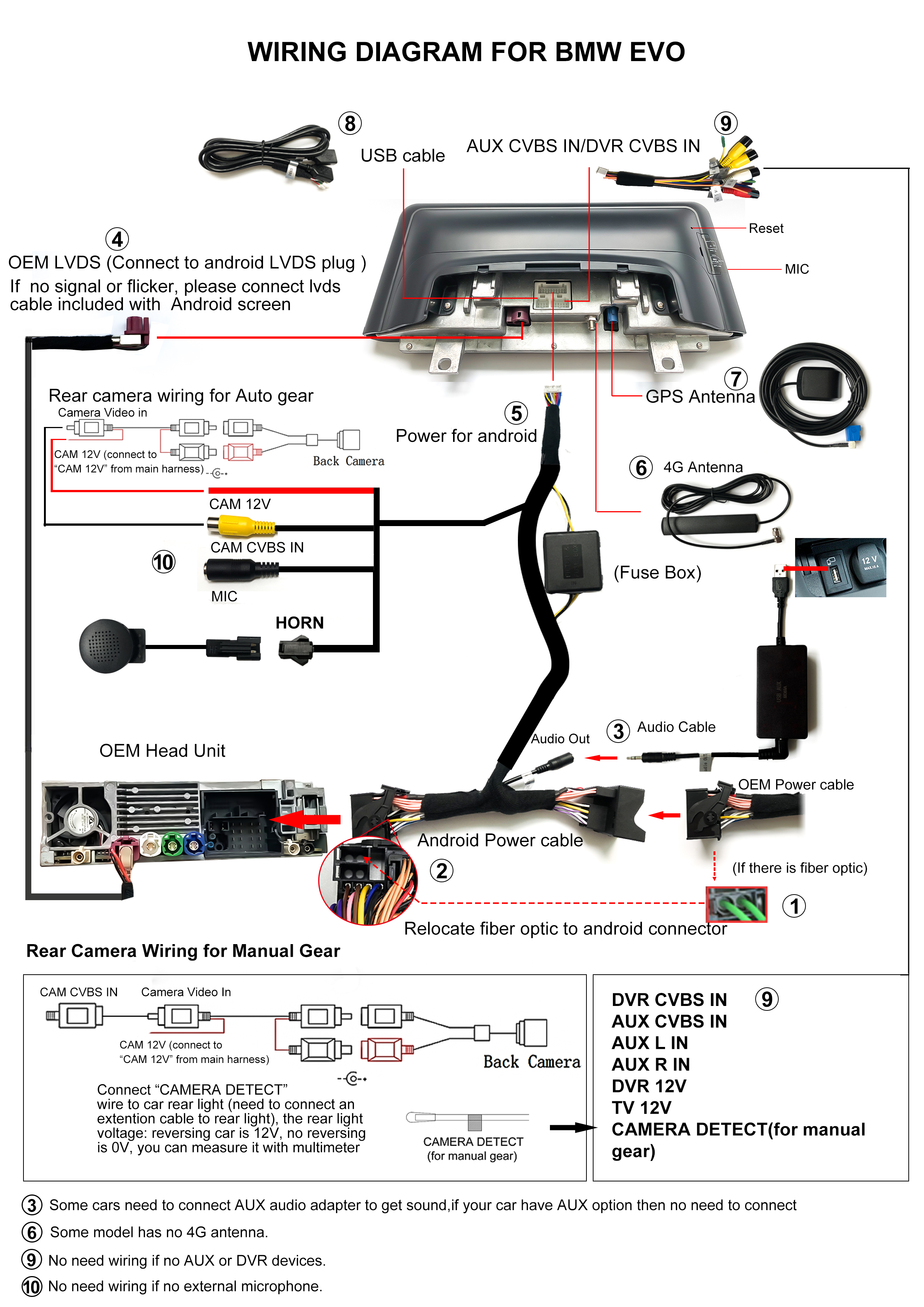

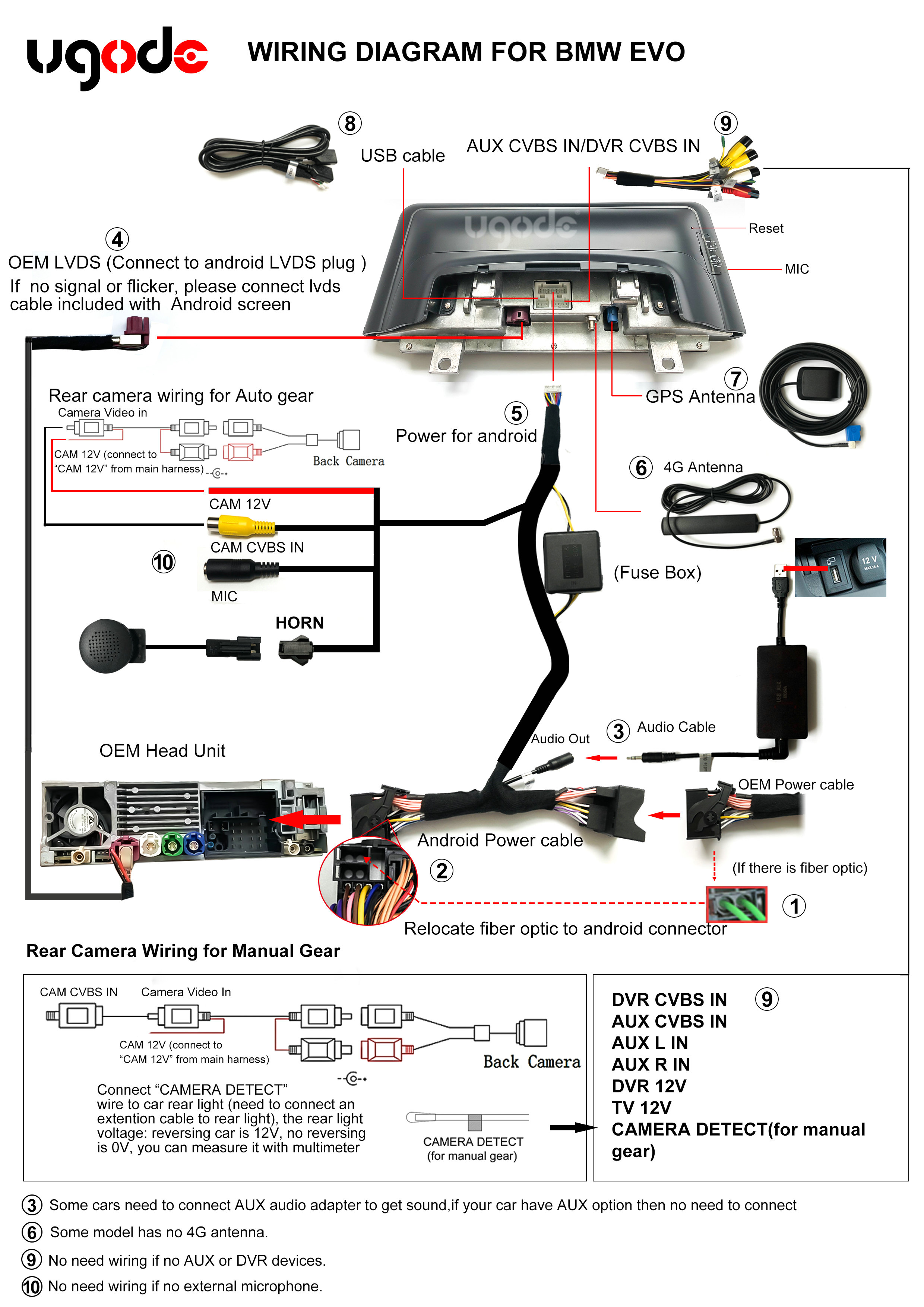

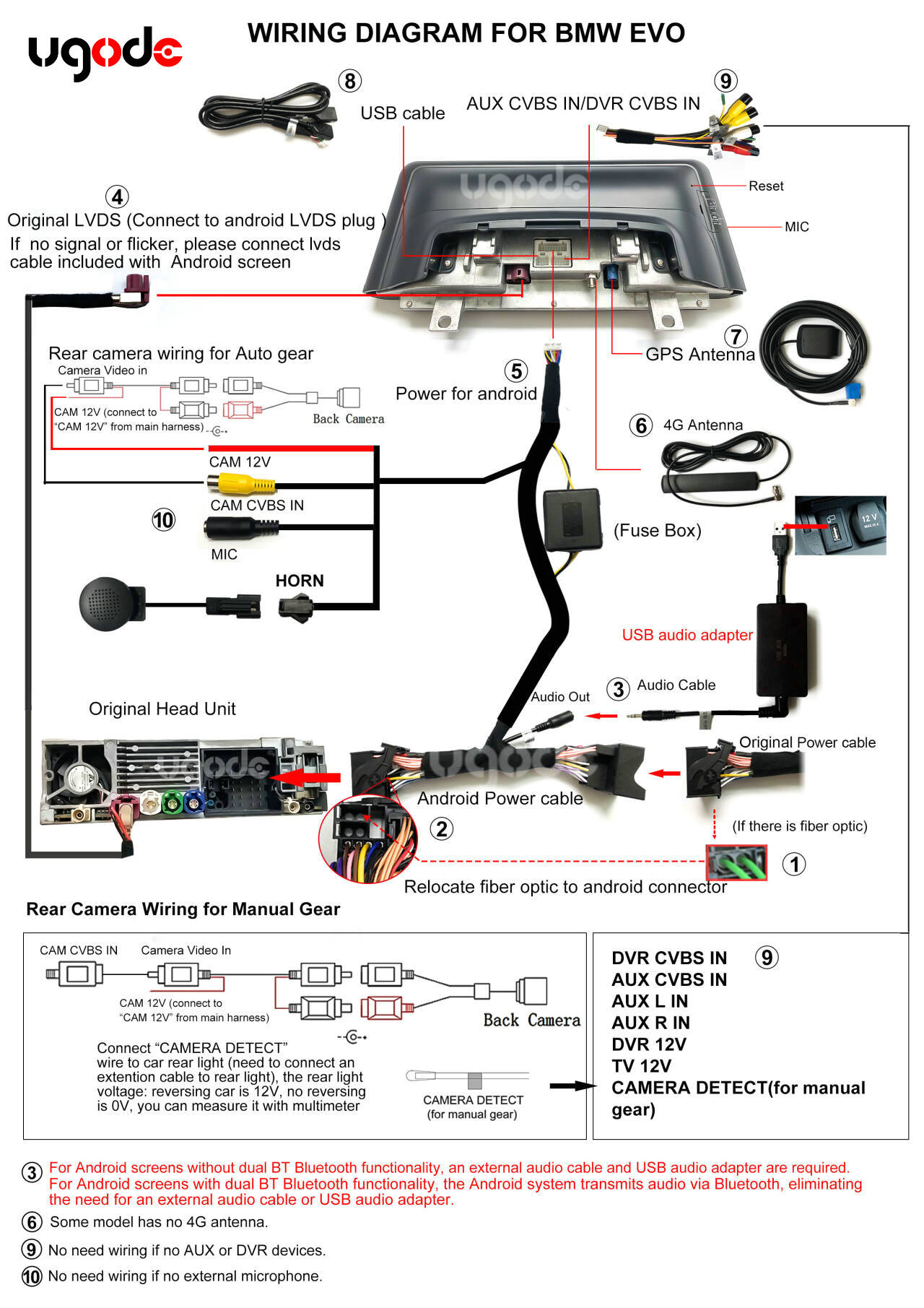

UGODE Android screen BMW EVO Wiring Diagram
FAQ：
Q：My Android screen has dual Bluetooth functionality. How can I use Bluetooth to transmit audio?
A：Click here to view the solution.
Q：There is no sound on the Android system.
A：Click to view details.
Q：The original interface has no signal or displays abnormally.
A：Click to view details.
Q：The original knob does not work.
A：Click to view details.
Q：How to run navigation and the radio simultaneously.
A：Click here for solutions.
Q：When reversing, the Android screen does not switch to the backup view.
A：Click here for solutions.
Post time: Nov-20-2025
