Note: Be sure to disconnect the vehicle power before installation.

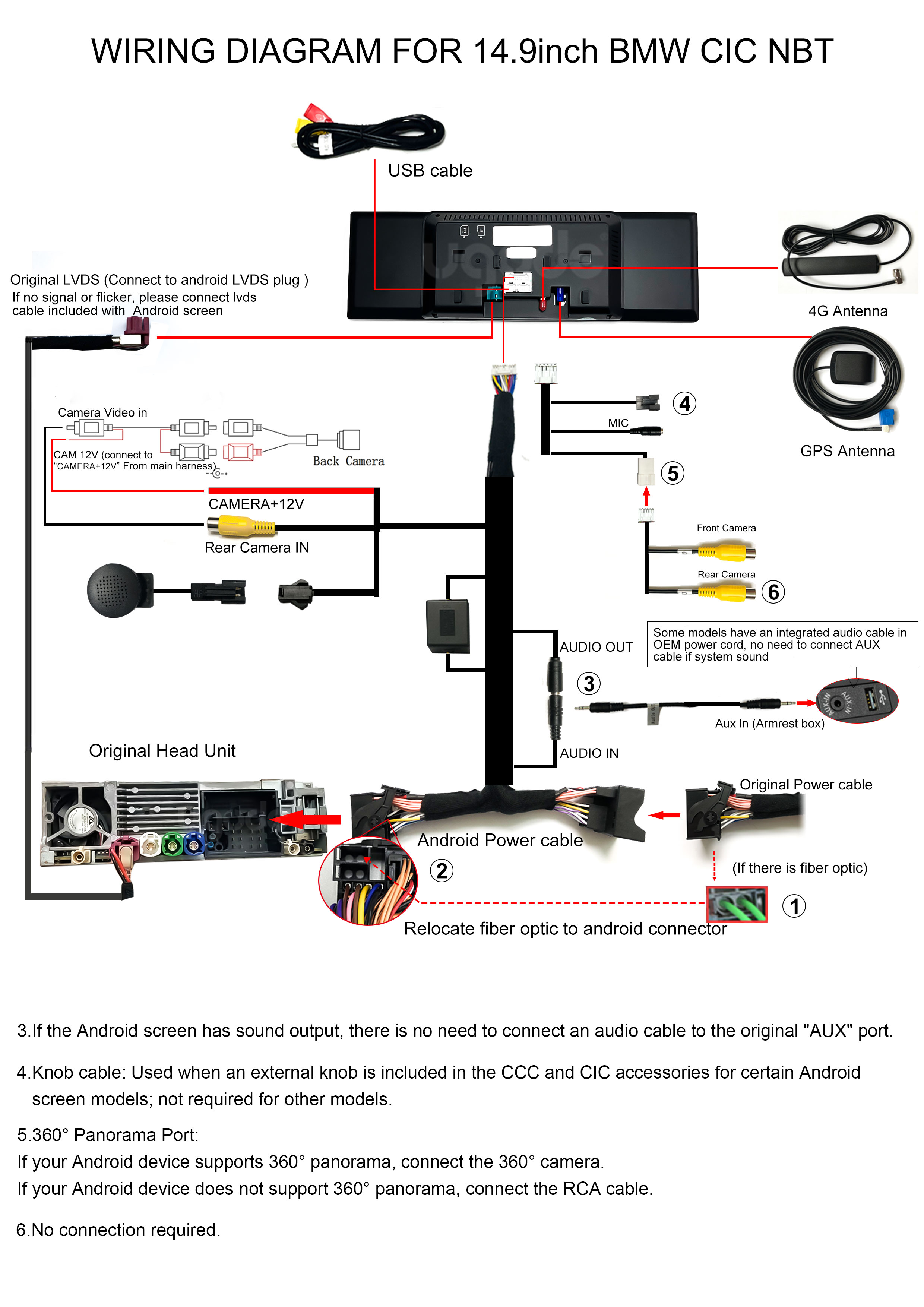

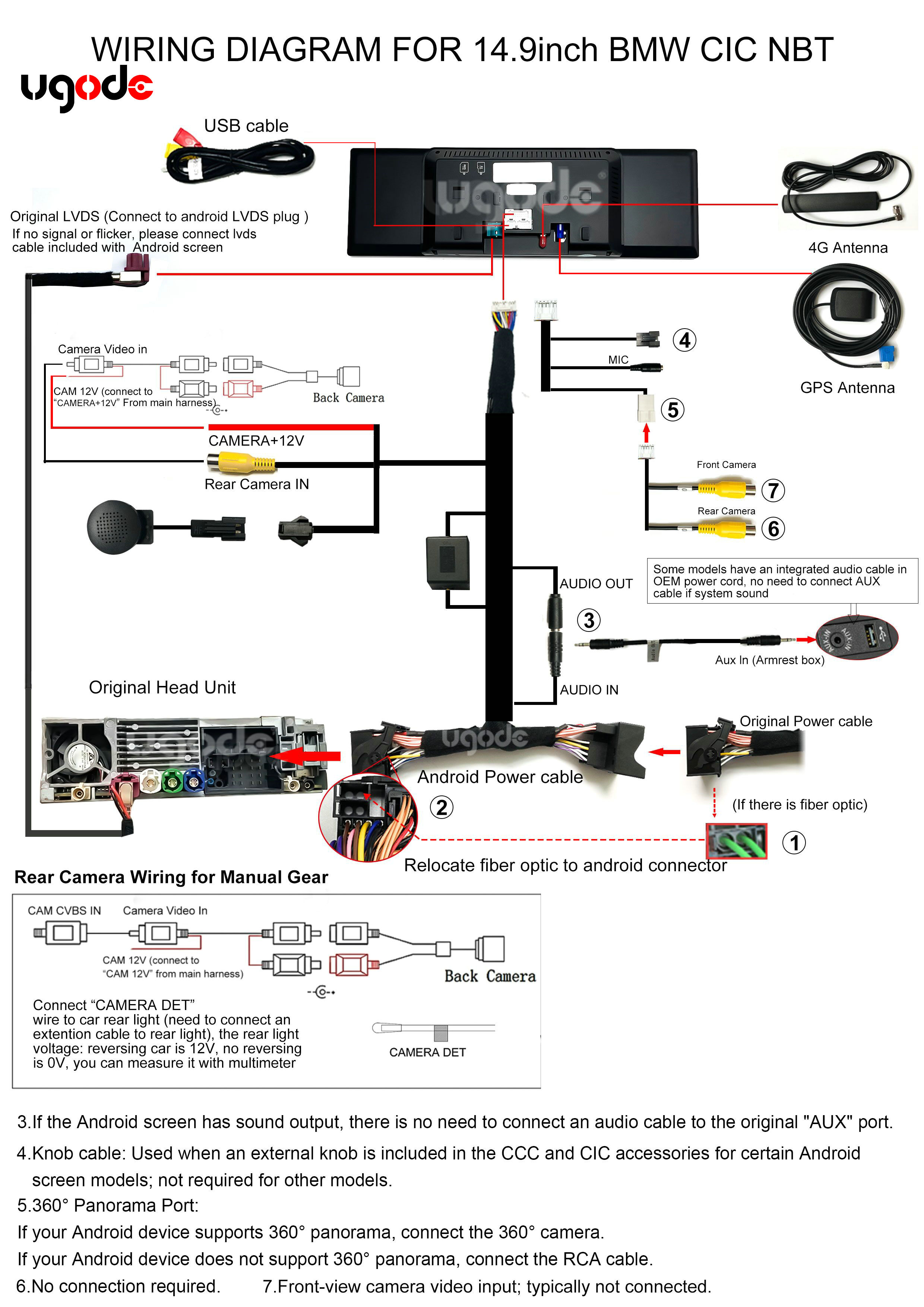

UGODE Android screen Qualcomm 14.9-inch BMW CIC/NBT Wiring Diagram
FAQ：
Q：There is no sound on the Android system.
A：Click to view details.
Q：The original interface has no signal or displays abnormally.
A：Click to view details.
Q：The original knob does not work.
A：Click to view details.
Q：How to run navigation and the radio simultaneously.
A：Click here for solutions.
Q：When reversing, the Android screen does not switch to the backup view.
A：Click here for solutions.
Post time: Apr-11-2026
