For BMW Z4 E89 Android Screen Replacement Apple CarPlay Multimedia Player
Suitable for BMW Z4 E89 Android screen
Andriod Screen Replacement Multimedia Apply For BMW Z4 E89 (2009-2016) CIC screen and no oem screen, provide with iDrive
Below are features:
1. Replaces stock screen with 10.25inch/12.3inch big Android monitor
2. Retains OEM audio quality
3. Retains all features of OEM radio
4. Retains OEM on-board computer (oil, consumption, settings, etc.)
5. Built-in Bluetooth module + supports original Bluetooth
6. Built-in GPS module + supports original GPS
7. Retains OEM backup camera+supports aftermarket camera/360 cameras
8. Retains OEM parking system
9. 12.3 inch IPS LCD touch screen, anti-glare blue-ray screen optional
10. Screen resolution: 1280*480/ 1920*720
11. Built-in wireless and wired Carplay &Android Auto
12. Split screen function: view map and video at same time
13. Qualcomm Snapdragon Strong CPU fast speed operating
14. 4GB RAM memory (8GB optional)
15. 64GB Internal Storage (128GB 256GB optional)
16. Dual Wi-Fi Band Connection (5 GHz & 2.4 GHz)/4G LTE modem
17. Support 4K ultra-definition video playback
18. Support Audio formats: MP3/WMA/FLAC/APE/AAC, etc.
19. Support Video formats: H264/MP4/AVI/RMVB/FLV/MKV, etc.
20. Built-in high sensitivity GPS receiver
21. Multiple UI themes: ID8 ID7 ID6 ID5
22. Built-in Bluetooth, with phone-book, support Bluetooth music (A2DP)
23. Built-in MIC, external MIC optional
24. Support ALL Original FUNCTIONS including COMAND controller, backup camera etc.
25. Support Parking trajectory/radar.
26. Support AUX Switch automatically.
27. Support Canbus, iDrive, Steering Wheel Control, car information.
28. Multi-language: English, Spanish, French, German, Arabic, Russian etc
|
Specification 1 (Real Android13) |
||
|
1 |
CPU |
Qualcomm Snapdragon 665(SM6125) Octa core 11nm LPP |
|
4 * A73 (2.0Ghz) + 4 * A53 (1.8Ghz) |
||
|
2 |
GPU |
Adreno 610 (950Mhz) |
|
3 |
OS |
Android 13 |
|
4 |
RAM ROM |
6+64GB/ 8+128GB/ 8+256GB EMCP chip eMMC5.1/UFS2.1+LPDDR4X |
|
5 |
Screen&Resolution |
10.25inch IPS LCD G+G Touch Screen 1280*480 /1920*720 |
|
12.3inch IPS G+G Touch HD Screen 1920*720 |
||
|
6 |
Bluetooth |
Bluetooth 5.0+ BR/EDR+BLE. |
|
7 |
WiFi |
IEEE 802.11 2.4G b/g/n 5G a/g/n/ac. |
|
8 |
4G SIM |
LTE Category 4：4DL Down 150Mbps 5UL Up 75Mbps |
|
9 |
Video |
Support 4K HD video, H.264 (AVC)，H.265 (HEVC) |
|
10 |
Image |
OpenGL ES 3.1+,OpenCL2.0 |
|
11 |
Carplay |
Wireless & Wired Apply Carplay, Wireless & Wired Android Auto, Support Phone Link |
|
Wireless and Wired Phone Mirroring |
||
|
12 |
Camera |
AHD CCD Reverse Camera |
|
13 |
GPS |
GPS/Beidou/Glonass,support built in or on-line maps |
|
14 |
Extend Memory |
Support Micro TF card slot, USB port. 128M max |
|
15 |
Suppot |
Real Time Weather ;Ota (on-line upgrade) |
|
16 |
Optional |
360 Panoramic View Camera optional |
|
|
|
|
|
Specification 2 (Android13) |
||
|
1 |
CPU |
Qualcomm snapdragon 680 (SM6225) Octa core 6nm LPP |
|
Octa core Kryo Gold (2.4Ghz)+Kryo Silver (1.9Ghz) |
||
|
2 |
GPU |
Adreno 610 (950Mhz) |
|
3 |
OS |
Android 13 |
|
4 |
RAM ROM |
4+64GB/ 8+128GB/ 8+256GB UFS2.2 + LPDDR4X |
|
5 |
Screen&Resolution |
10.25inch IPS LCD G+G Touch Screen 1280*480 /1920*720 . |
|
12.3inch IPS G+G Touch HD Screen 1920*720 |
||
|
6 |
Bluetooth |
5.1 + BR/EDR+BLE. |
|
7 |
WiFi |
Dual-Band WiFi IEEE 802.11 WiFi6 2.4G b/g/n 5G a/g/n/ac |
|
8 |
4G SIM |
LTE Category 4：4DL Down 150Mbps 5UL Up 75Mbps |
|
9 |
Video |
Support 4K HD video, H.264 (AVC)，H.265 (HEVC) |
|
10 |
Image |
Support OpenGL ES 3.1+,OpenCL2.0 |
|
11 |
CarPlay |
Wireless and wired CarPlay / Android Auto, Phonelink |
|
12 |
Camera |
AHD CCD Reverse Camera |
|
13 |
GPS |
GPS/Beidou/Glonass,support built in or on-line maps |
|
14 |
Extend Memory |
Support Micro TF card slot, USB port. 128G max |
If you are a enduser, welcome to make order on the following link directly:
https://www.ugode.de/products/fur-bmw-z4-e89-android-bildschirm-ersatz-apple-carplay-multimedia-player
A customer purchased a UGODE BMW Z4 Android screen with wireless CarPlay and Android Auto functionality. After installation, they found that there was no sound, Bluetooth wasn’t working, and weather information wasn’t displayed, so they contacted us regarding this issue.
Q：
I have changed every connection as requested from the WhatsApp representative. The unit will
not let me enter the weather manually. Can you please send me another unit that works properly?The unit plays for one day then the next day it doesn’t right away. I can get out of the car and it’s not working; get back in the car later in the day and it’s working. I click on the phone icon yesterday and an analog clock pop up on the screen. There is clearly some type of software problem with my unit. I really would like another unit to try. Doing my research I was able to see other vehicles like mine work well with your screen so I know it’s compatible. Thank you for helping me with this issue.
There is still no sound after installation.
A：
Hello, the Android screen needs to be connected to the internet to update the weather information.

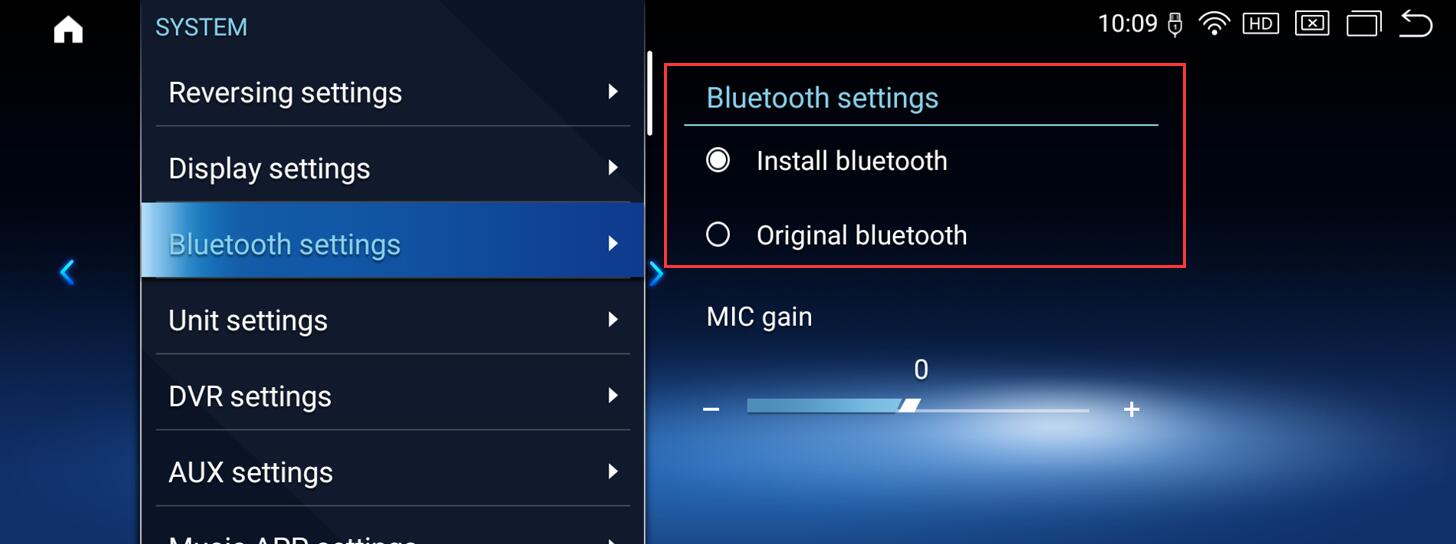

For Bluetooth issues, you need to go to the Settings menu and select: Install bluetooth
Route：SETTINGS-SYSTEM-Bluetooth settings

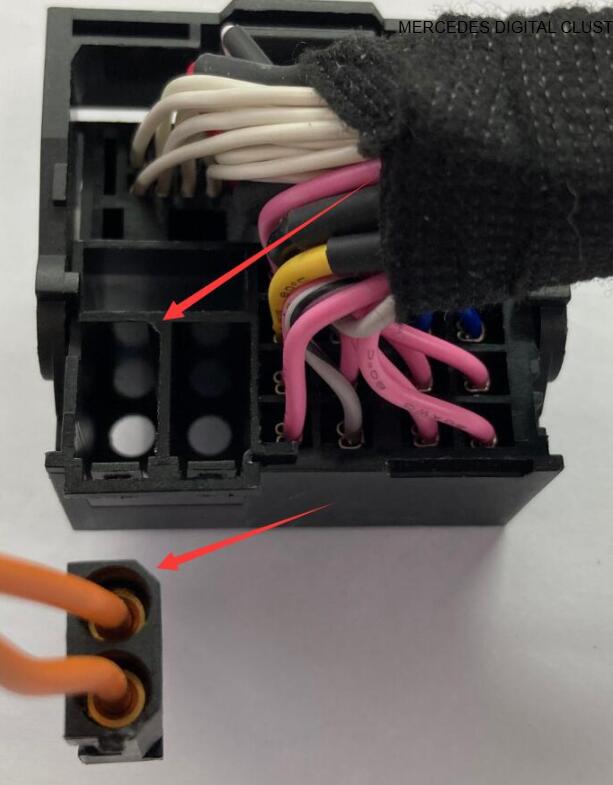

Issues with the Android screen not working properly or having no sound are typically caused by the optical fiber not being properly connected to the male connector on the Android main cable. Please check the optical fiber.
https://www.ugode.com/support/how-to-relocate-optic-cables-on-mercedes-bmw-android-display-upgrade/
Q：

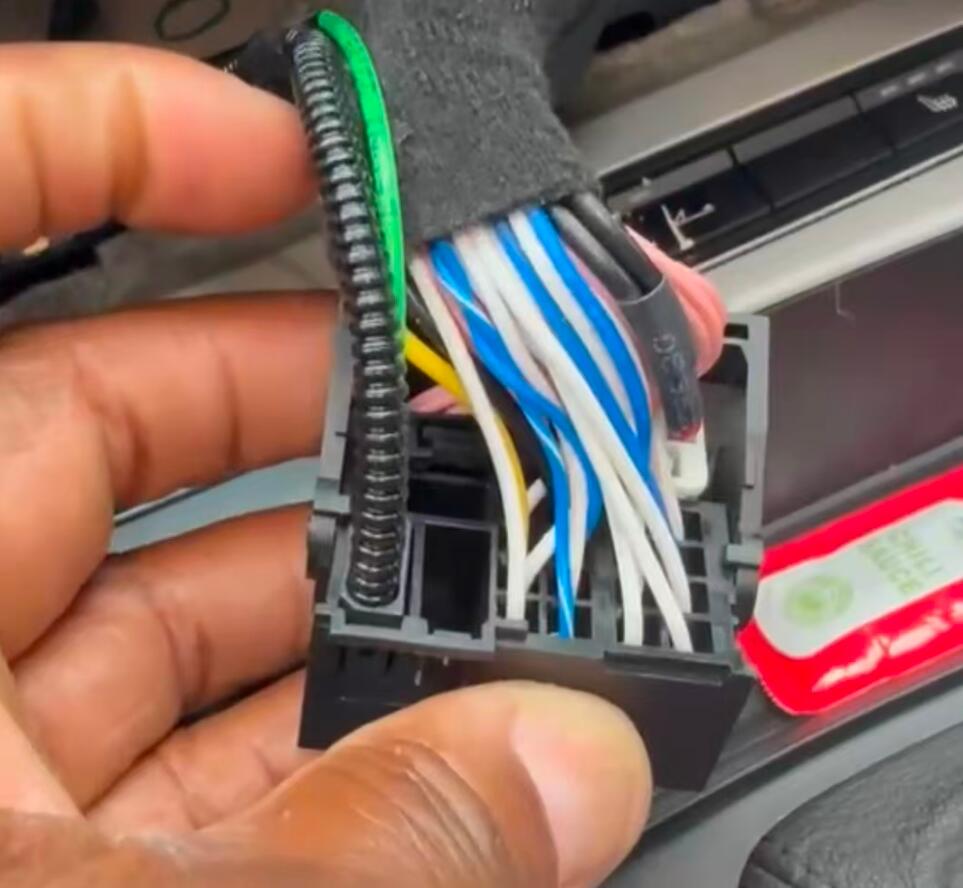

I have already inserted the fiber optic cable.
A：
Hello, your fiber optic cable is inserted the wrong way and isn’t fully seated.

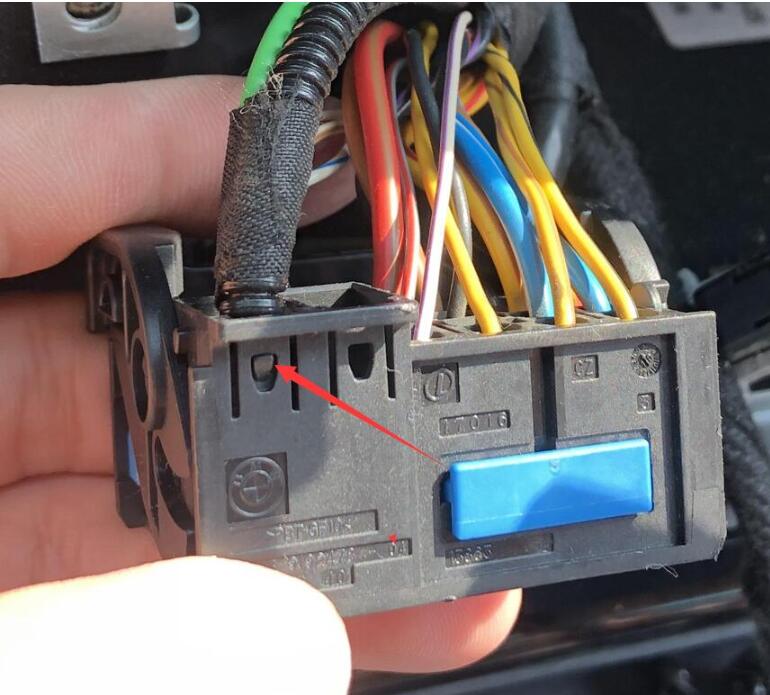

There is a notch on the fiber optic jack; you need to align it with the notch. There is also a protrusion on the jack that needs to snap into the hole in the socket once inserted.
Q：
I reinserted the fiber-optic cable following your instructions, and now the Android screen is working properly. Thank you for your technical support.
A：
You’re welcome. If you have any further questions, please feel free to contact us at any time.
