14.9inch Screen For BMW 5Series F10 Android 13 Car Multimedia Player Auto Radio Headunit Car Stereo GPS Navi

Ugode 14.9inch BMW 5Series F10 Android13 Car Stereo Display Replacement Upgrade Retrofit

Short Description:

* 14.9inch IPS Screen, Android System

* Support Apps including Waze, Youtube, Google Maps and many more

* Split Screen function

* Capacitive Touch Screen

* Wireless network connection via Wifi and 4G LTE.

* Built In Bluetooth

* USB Ports for External Media Input

* Dual System Switch,Original System Still Maintain

* Supports Original Steering Control and Command Knob

* Plug and Play Installation.

* Wireless and wired Carplay and Android Auto

Send email to us

Features

Specification

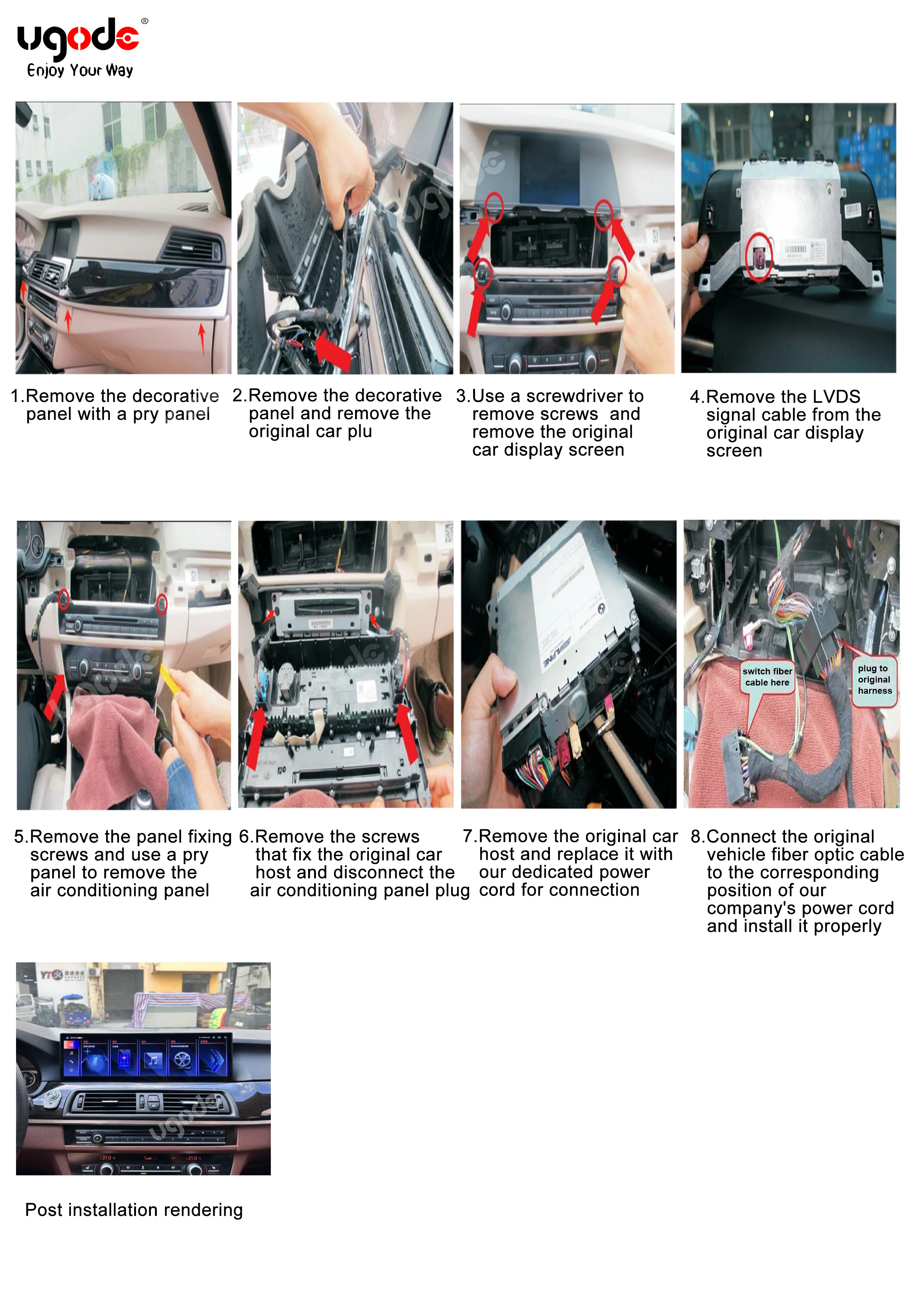

Installation Guide

FAQ

Product Tags

14.9inch BMW 5Series F10 F11 2010-2012 CIC

14.9inch BMW 5Series F10 F11 2013-2017 BNT

Descriptions:

1. Replaces stock screen with 14.9inch Android monitor

2. Retains Original audio quality

3. Retains all features of Original radio

4. Retains Original on-board computer (oil, consumption, settings, etc.)

5. Built-in Bluetooth module + supports original Bluetooth

6. Built-in GPS module + supports original GPS

7. Retains Original backup camera+supports aftermarket camera/360 cameras

8. Retains Original parking system

9. 14.9inch IPS LCD touch screen

10. Screen resolution: 2560*720

11. Android 13：Wireless & Wired Apply Carplay, Wireless & Wired Android Auto, Support Phone Link

12. Split screen function: view map and video at same time

13. Built-in high sensitivity GPS receiver

14. Built-in Bluetooth, with phone-book, support Bluetooth music (A2DP)

15. Support ALL Original FUNCTIONS including COMAND controller, backup camera etc.

16. Support Parking trajectory/radar.

17. Support AUX Switch automatically.

18. Support Canbus, iDrive, Steering Wheel Control, car information.

19. Multi-language: English, Spanish, French, German, Arabic, Russian etc

Previous: LEXUS Interface Carplay Android Auto Qualcomm 360 Panoramic Box

Next: 14.9inch Screen For BMW 5Series E60 Android 13 Car Multimedia Player Auto Radio Headunit Car Stereo GPS Navi

Specification 1 (Real Android13)
1	CPU	Qualcomm Snapdragon 665(SM6125) Octa core 11nm LPP
1	CPU	4 * A73 (2.0Ghz) + 4 * A53 (1.8Ghz)
2	GPU	Adreno 610 (950Mhz)
3	OS	Android 13
4	RAM ROM	4+64GB/ 8+128GB/ 8+256GB EMCP chip eMMC5.1/UFS2.1+LPDDR4X
5	Screen&Resolution	14.9inch IPS LCD G+G Touch Screen
5	Screen&Resolution	2560*720
6	Bluetooth	Bluetooth 5.0+ BR/EDR+BLE.
7	WiFi	IEEE 802.11 2.4G b/g/n 5G a/g/n/ac.
8	4G SIM	LTE Category 4：4DL Down 150Mbps 5UL Up 75Mbps
9	Video	Support 4K HD video, H.264 (AVC)，H.265 (HEVC)
10	Image	OpenGL ES 3.1+,OpenCL2.0
11	Carplay	Wireless & Wired Apply Carplay, Wireless & Wired Android Auto, Support Phone Link
11	Carplay	Wireless and Wired Phone Mirroring
12	Camera	AHD CCD Reverse Camera
13	GPS	GPS/Beidou/Glonass,support built in or on-line maps
14	Extend Memory	Support Micro TF card slot, USB port. 128M max
15	Suppot	Real Time Weather ;Ota (on-line upgrade)
16	Optional	360 Panoramic View Camera optional

Specification 2 (Android13)
1	CPU	Qualcomm snapdragon 680 (SM6225) Octa core 6nm LPP
1	CPU	Octa core Kryo Gold (2.4Ghz)+Kryo Silver (1.9Ghz)
2	GPU	Adreno 610 (950Mhz)
3	OS	Android 13
4	RAM ROM	4+64GB/ 8+128GB/ 8+256GB
5	Screen&Resolution	14.9inch IPS LCD G+G Touch Screen
5	Screen&Resolution	2560*720
6	Bluetooth	5.1 + BR/EDR+BLE.
7	WiFi	Dual-Band WiFi IEEE 802.11 WiFi6 2.4G b/g/n 5G a/g/n/ac
8	4G SIM	LTE Category 4：4DL Down 150Mbps 5UL Up 75Mbps
9	Video	Support 4K HD video, H.264 (AVC)，H.265 (HEVC)
10	Image	Support OpenGL ES 3.1+,OpenCL2.0
11	CarPlay	Wireless and wired CarPlay / Android Auto, Phonelink
12	Camera	AHD CCD Reverse Camera
13	GPS	GPS/Beidou/Glonass,support built in or on-line maps
14	Extend Memory	Support Micro TF card slot, USB port. 128G max

Some customers wanted to purchase UGODE BMW 5 Series F10 and F11 products with wireless CarPlay and Android Auto functions, but they didn’t know the difference between a Linux screen and an Android screen, so they consulted us about the technical aspects.

Q：
Hi,

My car is a BMW F11 with NBT and all original BMW Bluetooth audio options enabled, including Bluetooth music streaming.

Is there a difference in Linux 12’3″/Android 12,3″ systems?

I want to install your Android/CarPlay screen, but I do not want to use the AUX-In in the armrest as the main audio source.

Please confirm this specific use case:

Can your system do this on a BMW F11 with NBT?

Please answer clearly with either:

1. Yes, navigation prompts are audible while the original BMW radio remains active
2. No, the BMW source must be switched to AUX or Bluetooth audio
3. Only possible with an additional module or coding

Thanks.

A：
Hello,

The Linux screen does not have an operating system; it can only use CarPlay and Android Auto, and read USB drives. It cannot install apps, but it boots up very quickly.

The Android screen comes with an operating system, allowing you to install apps and offering better entertainment capabilities. It takes about 30 seconds to boot up.

The BMW NBT system transmits audio via the AUX channel. Most vehicles can transmit audio without connecting to an external AUX port, but a very small number of NBT-equipped vehicles require an AUX connection to produce sound. There is no way to resolve this.

- I am listening to the original BMW FM/DAB radio
- My phone is connected to CarPlay / Android Auto on your screen
- Google Maps or Waze gives navigation voice instructions
- These navigation instructions must be audible through the original BMW speakers
- I do not want to manually switch the BMW source to AUX or Bluetooth audio
- I do not want a visible AUX cable in the armrest
Can your system do this on a BMW F11 with NBT?
— All the above features are supported. For BMW NBT, you can select “Auto Switch AUX” so you don’t have to manually select “AUX” every time.

navigation prompts are audible while the original BMW radio remains active

Thanks.
