Many customers have purchased UGODE with wireless CARPLAY and Android AUTO function of Mercedes and BMW Android screen, after the installation of Android no sound or no signal of the original interface and other problems, these problems are not switching the fiber optic caused by the following for you to explain how to switch the fiber optic.
What is Fiber Optic?

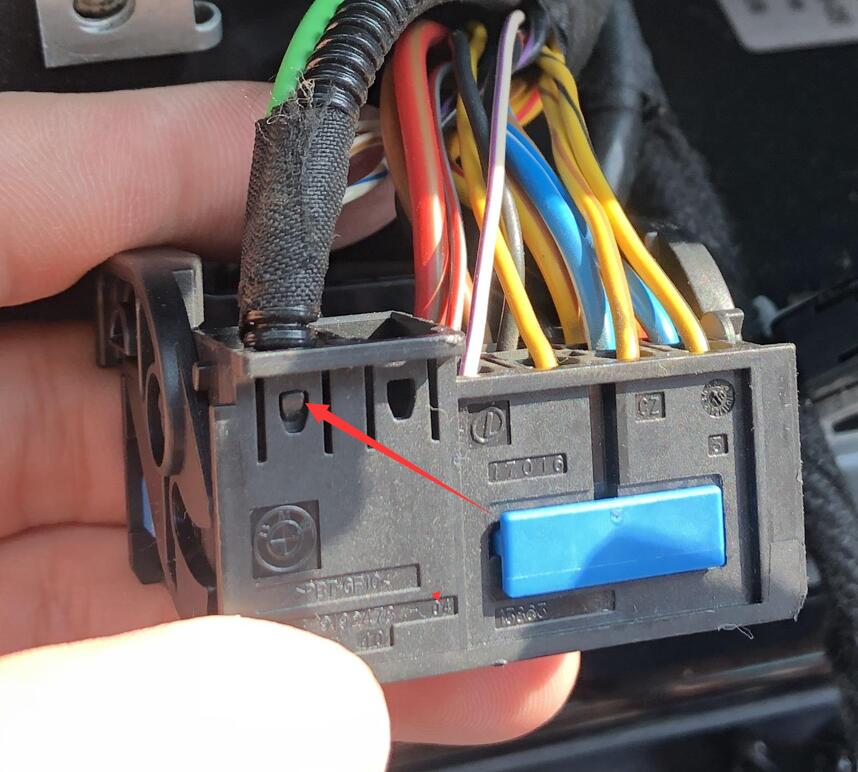

Some BMW and Mercedes-Benz models are equipped with fiber optic amplifiers through which voice, data, protocols, etc. are transmitted.If your car has optic fiber(Ignore if no optic fiber), need to relocate it to android harness, or else the problems maybe: No sound, No signal, etc

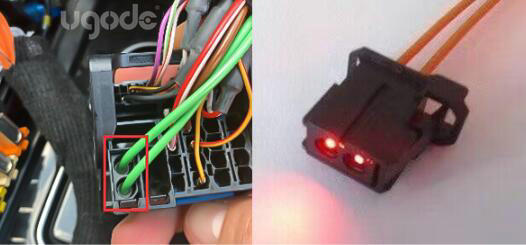

BMW’s fiber optics are usually green, while Mercedes’ fiber optics are usually orange.

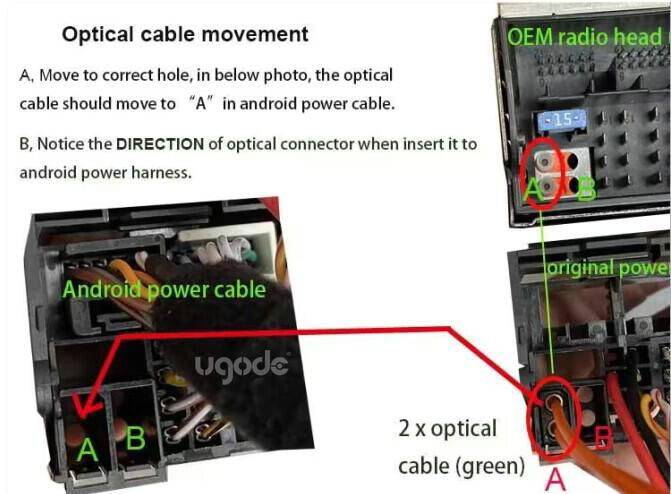

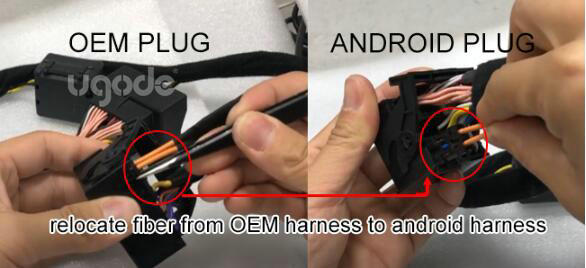

How to relocate Fiber Optic to Android harness
Demo video：https://youtu.be/HmnRCmwMVNA
Note: Do not reverse the fiber optic cable; it will not function if inserted incorrectly.

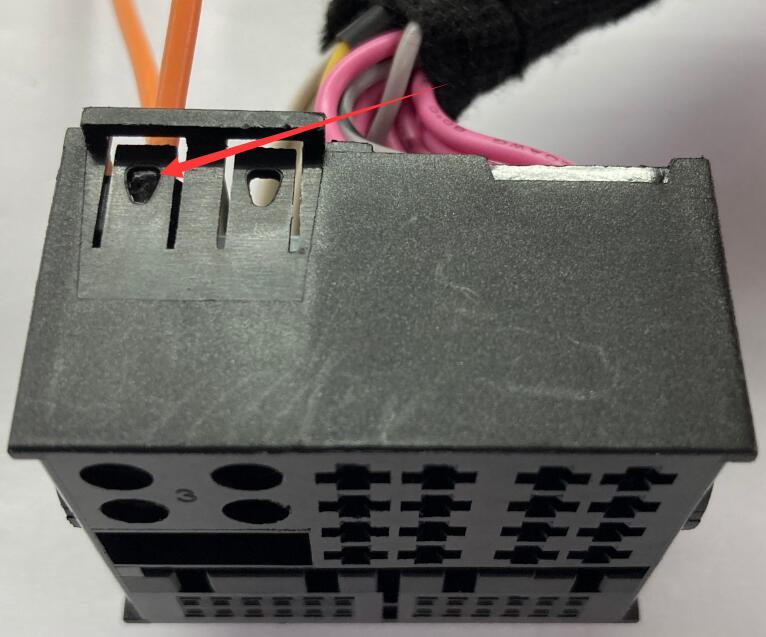

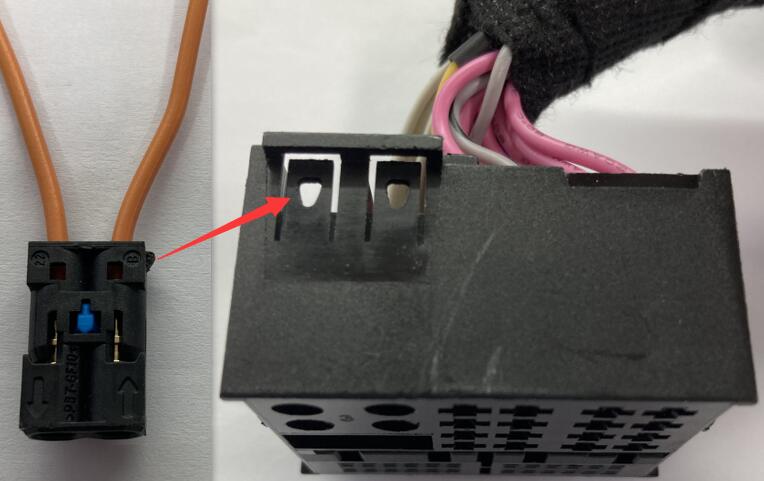

1. The fiber optic cable connector has a beveled edge that must align with the beveled surface of the Android cable’s fiber optic port.

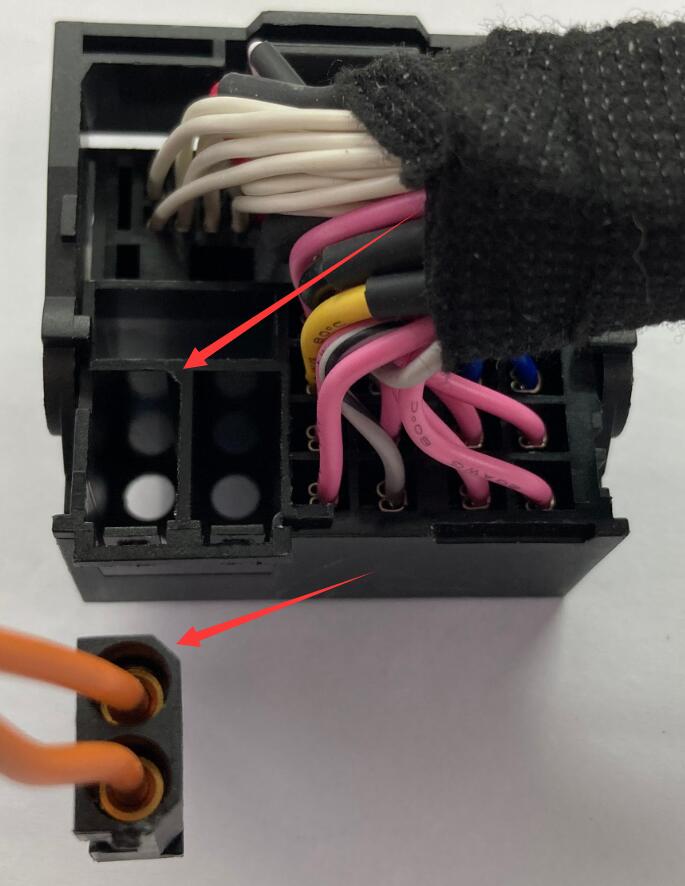

2. The protruding part on the opposite side of the fiber optic cable connector must be inserted into the alignment hole of the fiber optic port on the Android cable.
3. If the fiber optic cable is inserted backwards, it will protrude from the socket.

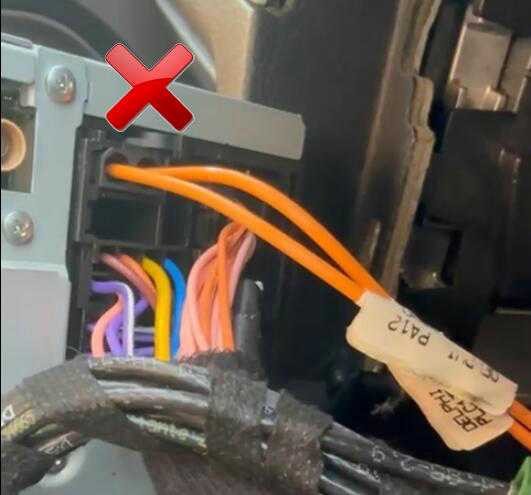

Below is an example of a fiber optic cable inserted in the wrong direction.
