There are 17 models of UGODE Audi screens. Each Audi model has different CAN protocol options and in-vehicle display parameters depending on the year of manufacture. If the wrong option is selected, the original car CD player will not start and there will be no signal from the original car.
1.You need to enter the Android factory mode to select the CAN protocol and Vehicle Display.

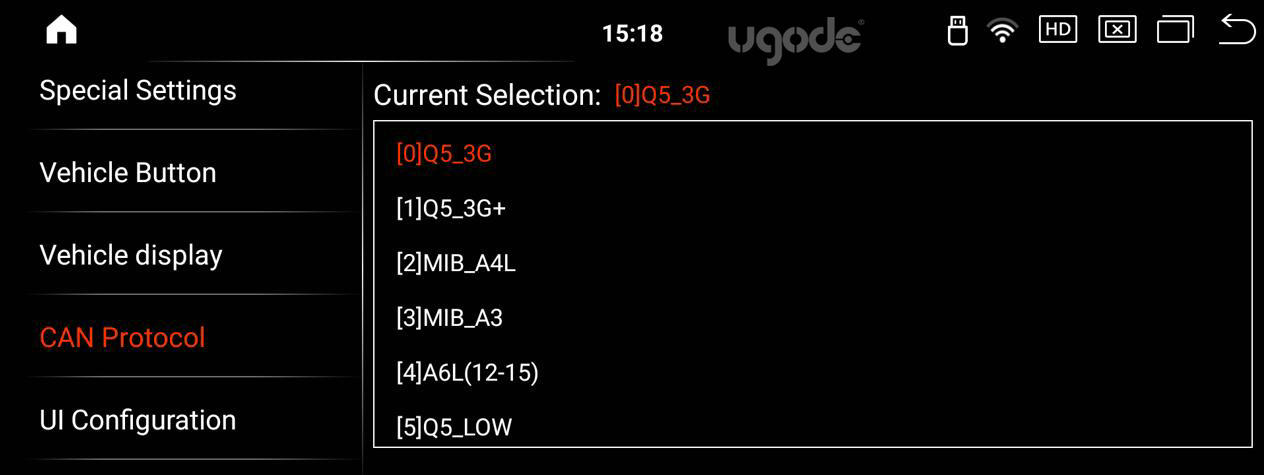

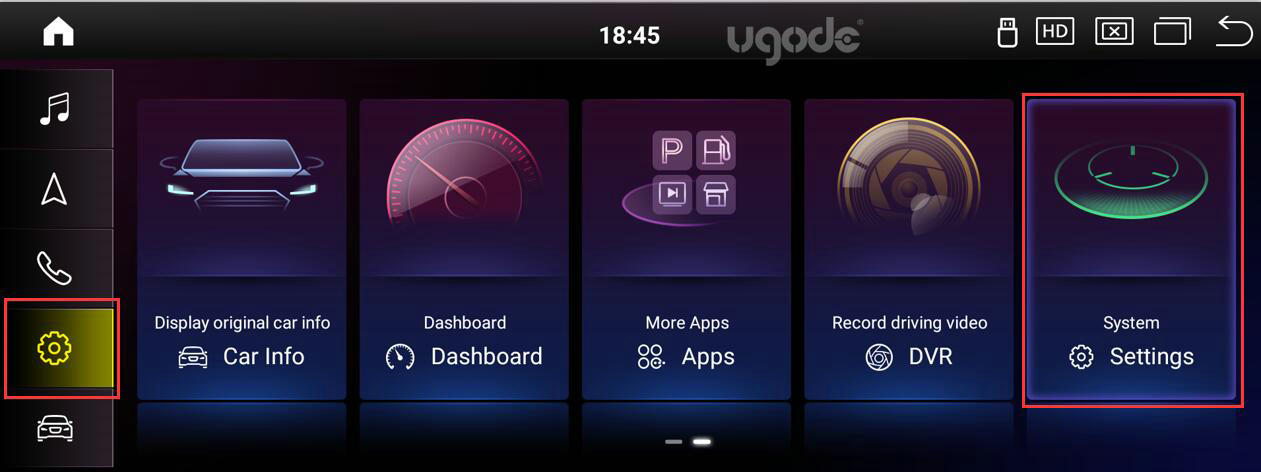

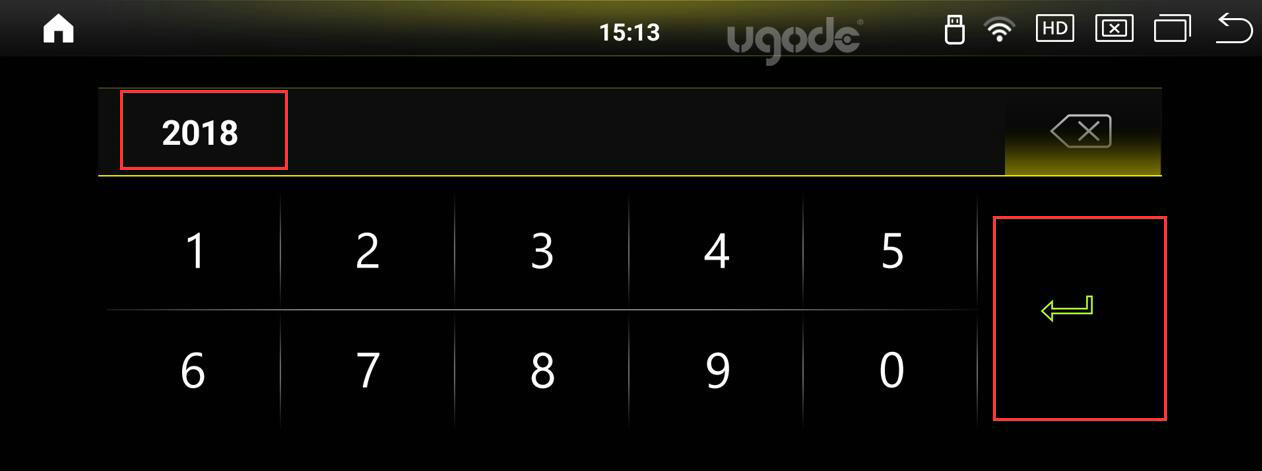

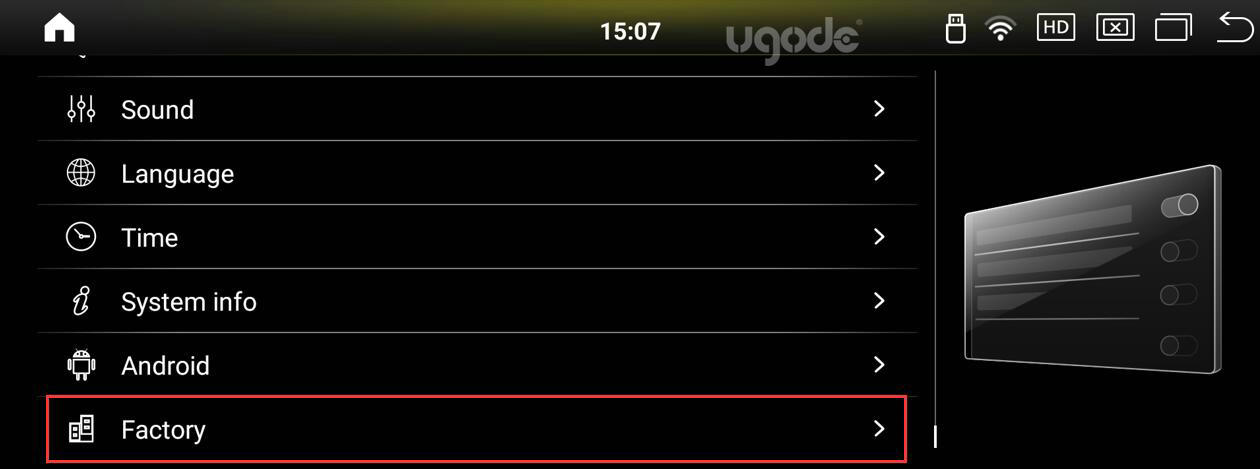

Routes：Settings ->Factory (code”2018″)->CAN Protocol

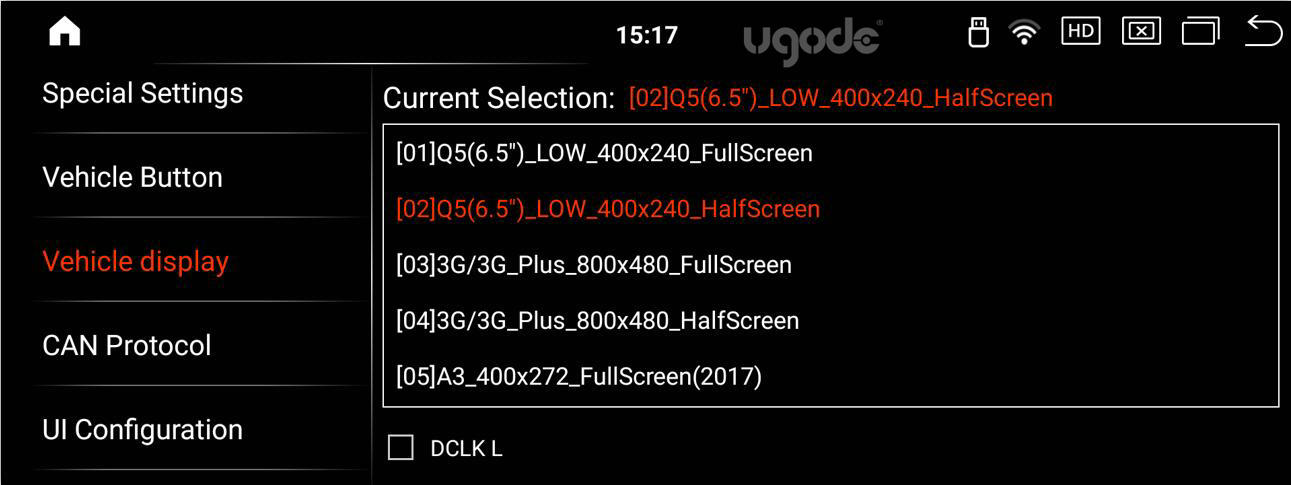

1.1.Vehicle display：

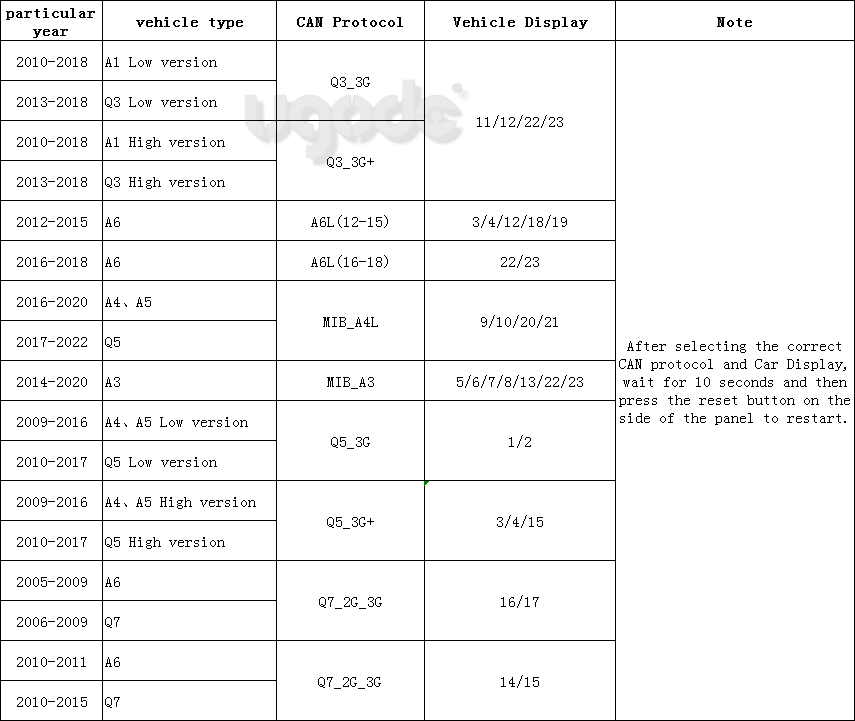

1.2.Year, CAN protocol and Vehicle Display comparison table:

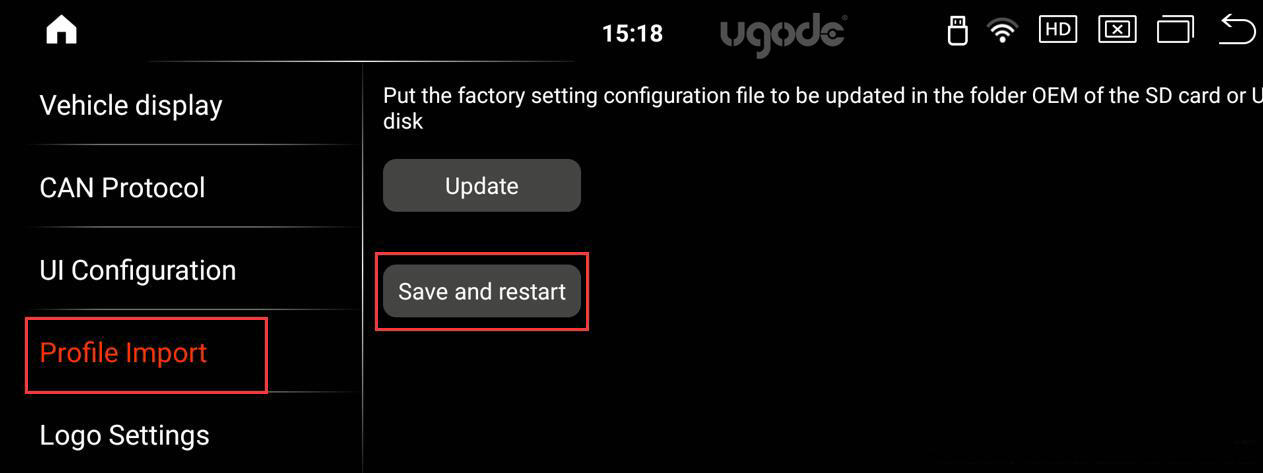

2.After selecting the correct CAN protocol and Vehicle display, wait 10 seconds, then enter Profile Import, click Save and restart.
3.Once the screen starts up and the boot logo appears, press the reset button on the side of the screen to restart.
Reset button location for each model:

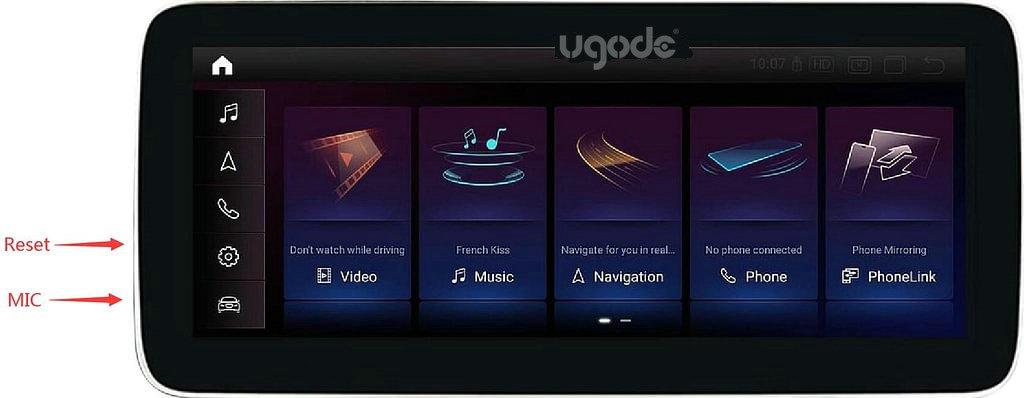

2009-2016 A4/A5，2010-2017 Q5：

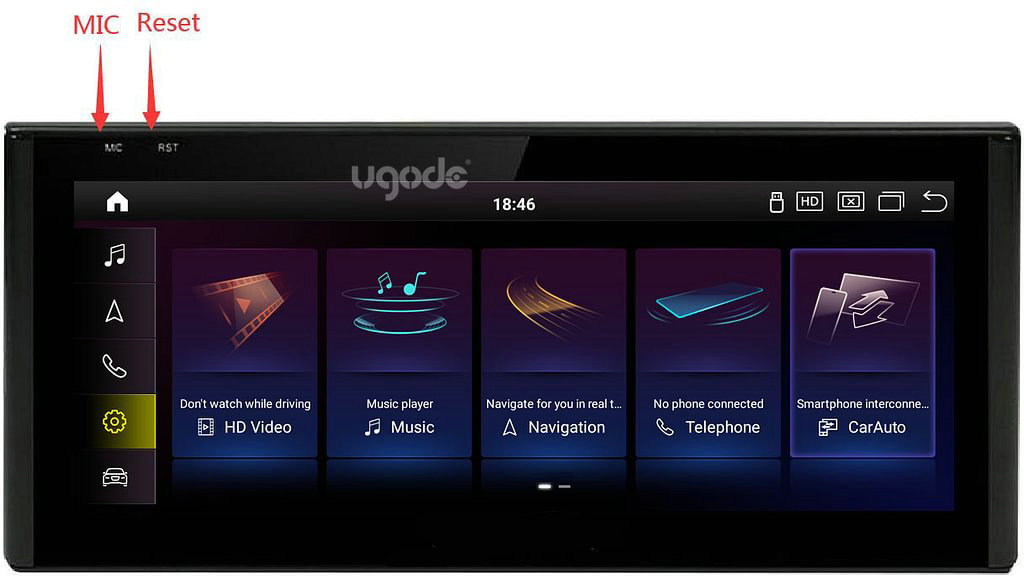

New Audi A1 A3 A4 A5 A6 A7 Q3（10.25 inches）：

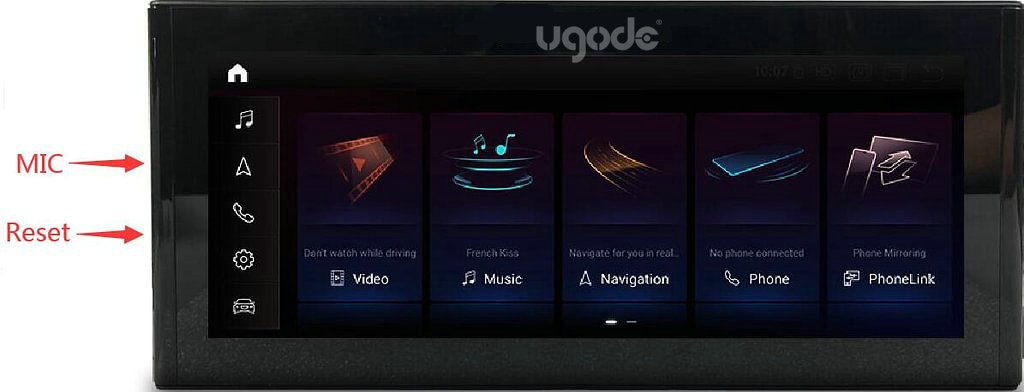

New Audi A1 A3 A4 A5 A6 A7 Q3（12.3 inches）：

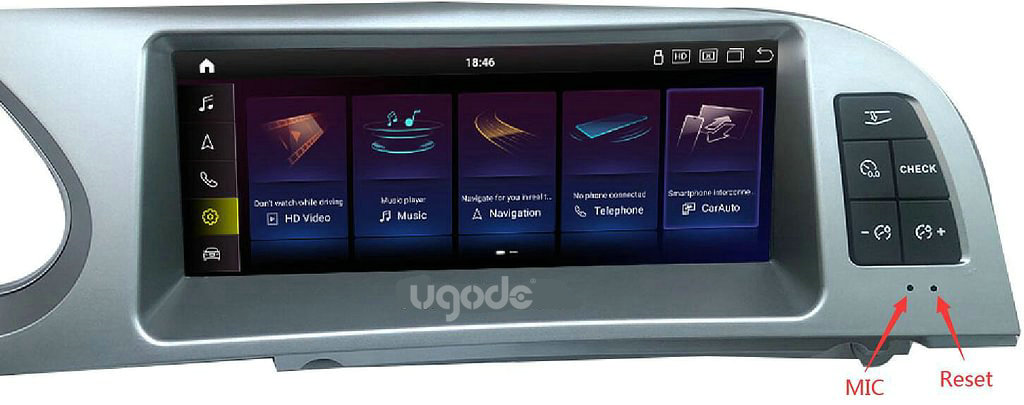

2005-2011 A6 LHD：

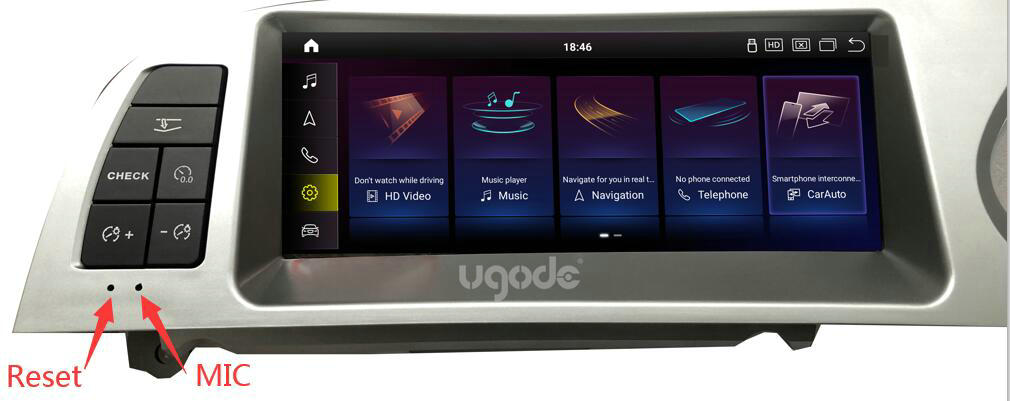

2005-2011 A6 RHD：

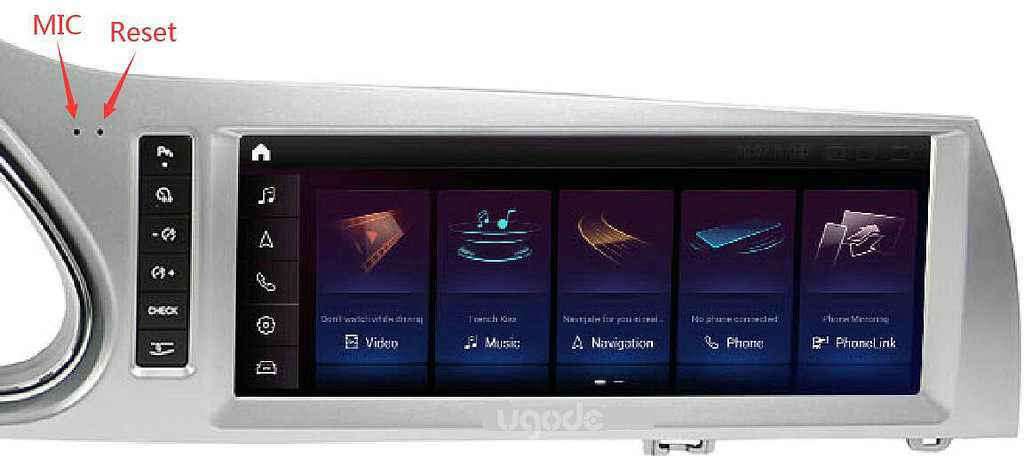

2006-2015 Q7 LHD：

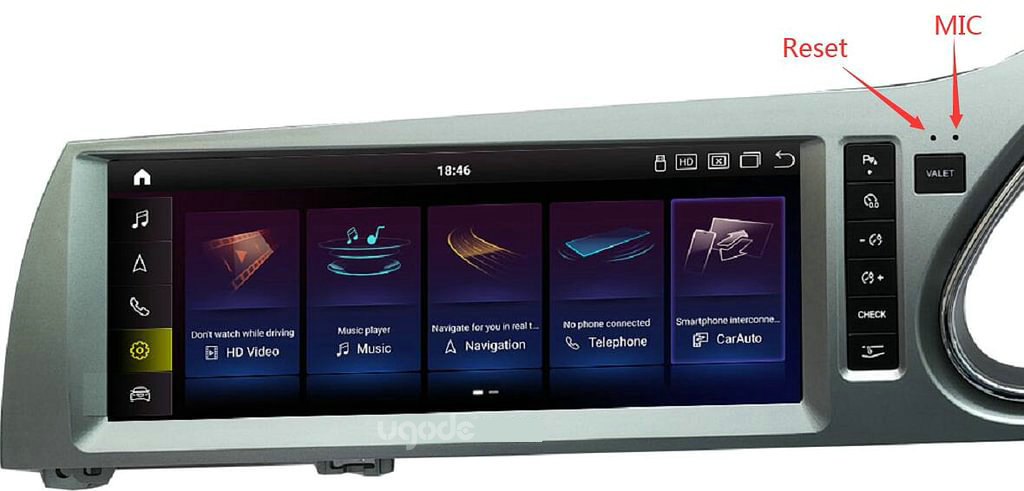

2006-2015 Q7 RHD：
