Some customers are interested in purchasing UGODE Audi Android head units and digital instrument clusters, but since they are unfamiliar with our products’ features, they
have reached out to us with inquiries.
Q：
Hi Ugode Team,
Hope you are well.
I am interested in purchasing your 10.25-inch Android screen for my 2013 Audi RS4 B8.5 Avant.
My car is a right-hand-drive Japanese import fitted with:
MMI 3G+ / HN+
Factory Bang & Olufsen audio
Factory reversing camera
Front and rear parking sensors
Audi Drive Select
Factory Bluetooth and microphone (Bluetooth calls but NO Bluetooth Streaming A2DP)
I am considering the 10.25-inch RHD anti-glare HIGH version with 8GB RAM and 128GB storage.
Apologies for the number of questions, but I would like to confirm the specification and compatibility before ordering.
Could you please confirm:
Is this version fully compatible with a Japanese-market, right-hand-drive RS4 B8.5 with MMI 3G+?
Will the original MMI menus, Drive Select, steering-wheel controls, B&O audio, parking sensors and factory reversing camera continue to work?
Can you guarantee that the unit supplied will have the Snapdragon 665 processor, 8GB RAM, 128GB storage and a native 1920 × 720 display?
Could you send me a photograph of the current unit’s About Device page showing the processor, RAM, storage, Android version and MCU version?
How is CarPlay and Android audio connected to the factory B&O system? Does it use the AMI/AUX input, and is the required adaptor included?
Can the original Audi Bluetooth system and factory microphone remain in use for telephone calls? Will the microphone work through android auto auto/car play calls too?
Does the screen have a physical HDMI video output?
I have also seen the digital instrument cluster for the Audi A4/A5/Q5 on your website which I would also like to purchase at the same time.
Could you therefore confirm:
Can your 10.25-inch Android screen be connected to your digital dashboard so that it displays or mirrors Google Maps, Waze, CarPlay and other screen content?
Does the digital dashboard have a physical HDMI input, or does it communicate with the Android screen by another method?
Can the centre screen and digital dashboard operate independently, or do they only show the same image?
Do you offer an RS4-specific dashboard configuration with:
A tachometer scale suitable for the RS4’s 8,250rpm redline
A 9,000rpm or 10,000rpm display with the correct shift point graphics
MPH as the main speed display
S-tronic gear indication
RS4 graphics and suitable shift-warning points?
I would not want the generic 8,000rpm A4/A5 version, as this would not be suitable for the RS4 engine.
My factory reversing-camera quality is also quite poor. Could you confirm whether the Android screen supports an upgraded AHD 1080p boot-handle camera, and whether dynamic
steering guidelines and the original parking-sensor graphics can be retained? I would keep the OEM camera in the short term.
Finally, please could you provide:
The price for the 10.25-inch RHD anti-glare 8GB/128GB screen
The price for the correct RS4 digital dashboard
The price for a compatible upgraded AHD camera
Any package discount available when purchasing these items together
Shipping cost to Rochdale, United Kingdom, postcode OL12 0QS
The current production and delivery timeframe
Whether UK VAT and import charges are included or collected separately on delivery
Details of the warranty and return process
I attach a few photos
Many thanks,
A：
Hello,
Our Android screen is compatible with the Audi R8 RS4 B8.5.
The original MMI menu, Drive Select, steering wheel controls, B&O audio system, parking sensors, and factory-installed backup camera will all function normally.
We offer an Android screen powered by the Qualcomm Snapdragon 665 with 8GB of RAM and 128GB of storage, featuring a display resolution of 1920×720.

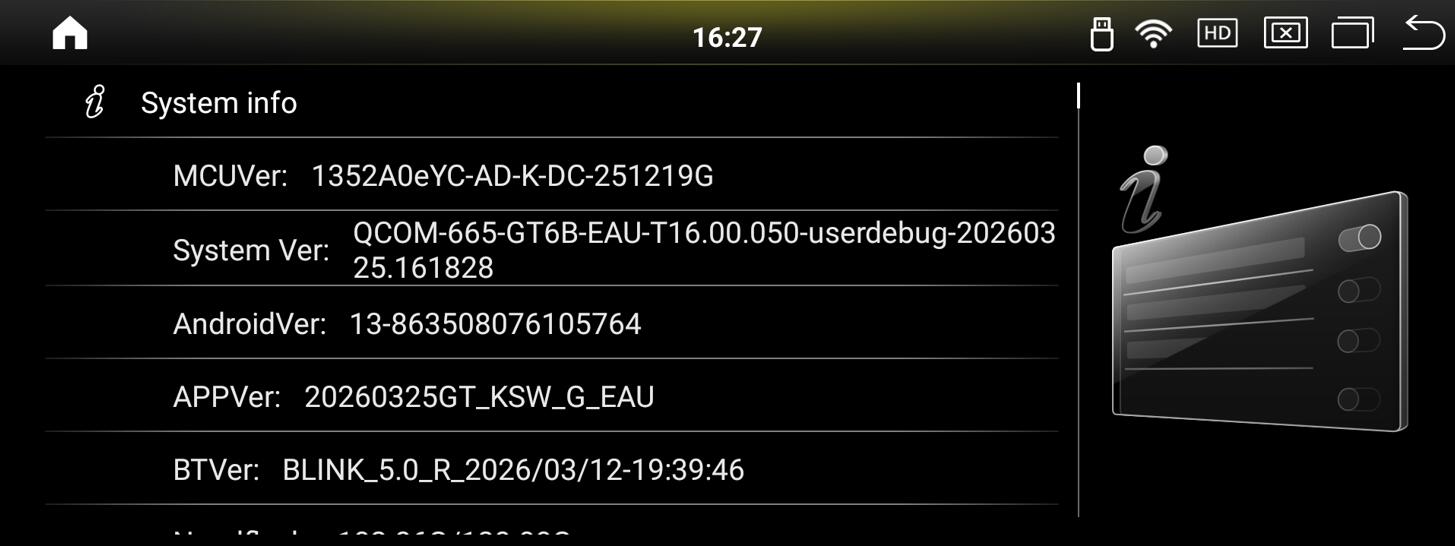

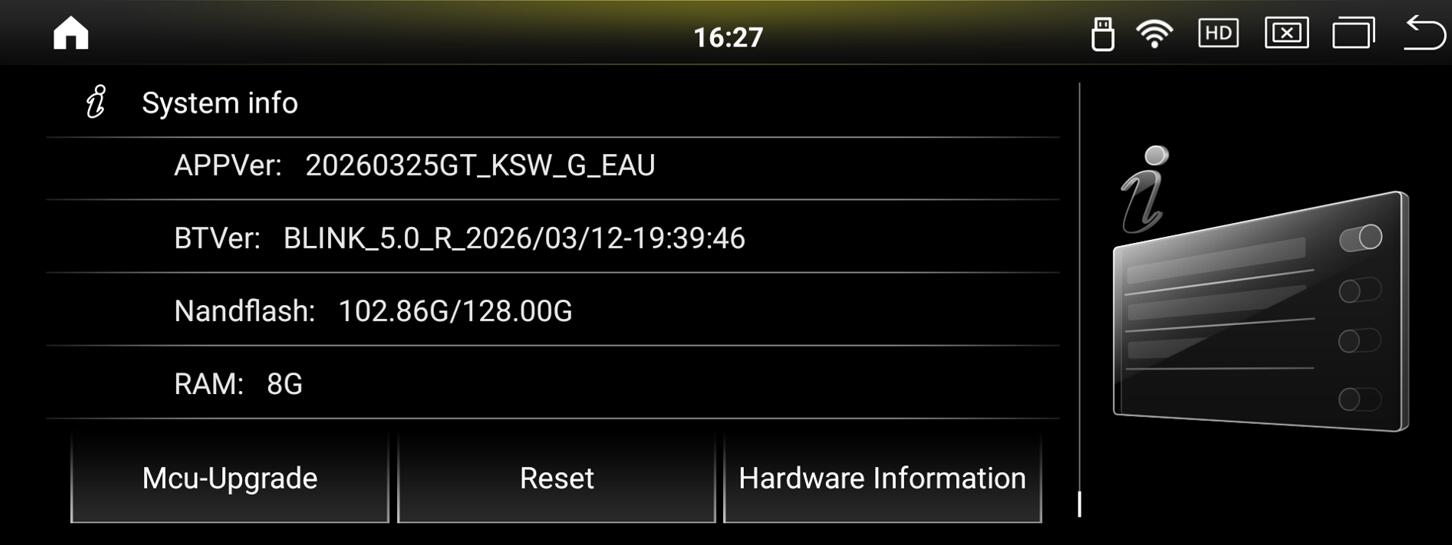

Below is a screenshot of the Android screen’s version information, which includes details on the Qualcomm Snapdragon 665 processor, RAM, storage capacity, Android version, and MCU version.
For multimedia audio and CarPlay audio on the Android head unit, the signal is fed into the original CD head unit via the AMI/AUX port. We provide an Audi-specific AMI cable, which includes an audio output cable.
If you make calls via the Android screen’s Bluetooth or CarPlay, you can only use the Android screen’s built-in microphone.
If you make calls using the original Bluetooth system, you can use the original microphone.
Our Android screen does not have an HDMI port, but HDMI output can be achieved using a USB-to-HDMI adapter. However, there are many types of USB-to-HDMI adapters on the market, and compatibility is poor, so we do not recommend using them.
Our Audi digital instrument cluster features an HDMI port. If you connect an Android screen to the digital instrument cluster via a USB-to-HDMI adapter, compatibility issues with the adapter may cause communication interruptions, so we do not recommend using it.
Do you offer an RS4-specific dashboard configuration with:
A tachometer scale suitable for the RS4’s 8,250rpm redline
A 9,000rpm or 10,000rpm display with the correct shift point graphics
MPH as the main speed display
S-tronic gear indication
RS4 graphics and suitable shift-warning points?
I would not want the generic 8,000rpm A4/A5 version, as this would not be suitable for the RS4 engine.
–All these features are supported, but since your Audi RS4 is right-hand drive, installation is not possible; our digital instrument cluster is only compatible with left-hand drive vehicles.
Our Android screen supports the factory-installed backup camera and is also compatible with AHD 1080p backup cameras, featuring dynamic steering assist lines and parking sensor alerts.
Here is the link for the 10.25-inch Android screen for the Audi A4; the link already shows the discounted price.
https://www.ugode.co.uk/products/ugode-apple-car-play-screen-for-audi-audi-a4-a5-s4-rs5-b8-android-auto-radio
Here is a link to the AHD cameras; the price listed in the link is already discounted.
https://www.ugode.co.uk/products/universal-ahd-night-view-car-rear-view-reverse-camera-ugode
Our products include free shipping and typically arrive in the UK within 7–10 days.
However, customers are responsible for any import duties charged by customs; we do not cover these fees.
Pls note we ship unit with international express way including DHL, fedex, ups etc. all is DDU, no including duty or any taxes etc. we do not know how much for those fee, it depends on your local customs policy, we can assist you to fill low product valume in shipping invoice.
Warranty details is below.
https://www.ugode.co.uk/pages/warranty
Post time: Aug-06-2026
