Porsche PCM Generations Identification Guide
(Based on Visual System Characteristics)
1. CDR System (2005-2009 Models)
Key Identifier:
Recessed Screen – Deeply embedded display surface
Physical Button Layout:
- FM/AM Radio toggle
- CD AUX input port (critical identification feature)
- SOUND/INFO function keys
Compatible Models:
• Cayenne E1 (2007-2010)
• 911 997.1 (2005-2008)
2. PCM 3.1 (2010-2013 Models)
Key Identifier:
Concave Screen Edges – Display sits within beveled frame
Distinct Control Cluster:
- NAV hardkey (definitive proof of PCM 3.1)
- Analog tuner knobs
- Display shows FM/AM/DAB frequencies
Model Applications:
• Panamera 970 (2010-2013)
• Cayenne 92A (2010-2014)
3. PCM 4.0 (2014-2016 Models)
Key Identifier:
Flush-Mount Glass Surface – Perfectly flat touch interface
Modern UI Elements:
- Digital radio presets (87.90MHz, 101.70MHz, etc)
- “PCM 4.0″ splash screen during boot
- Capacitive touch controls
Compatible Vehicles:
• Macan 95B (2014-2017)
• Cayman 981 (2014-2016)
4. PCM 5.0 (2017-Present Models)
Key Identifier:
Ultra-Widescreen Display – Aspect ratio >1.8:1
Signature Features:
- Edge-to-edge glass touch surface
- HD 1920×720 resolution elements
- Virtual “Hey Porsche” voice prompt area
Current Applications:
• Taycan (2020+)
• Cayenne E3 (2019+)
• 992 Series 911 (2020+)

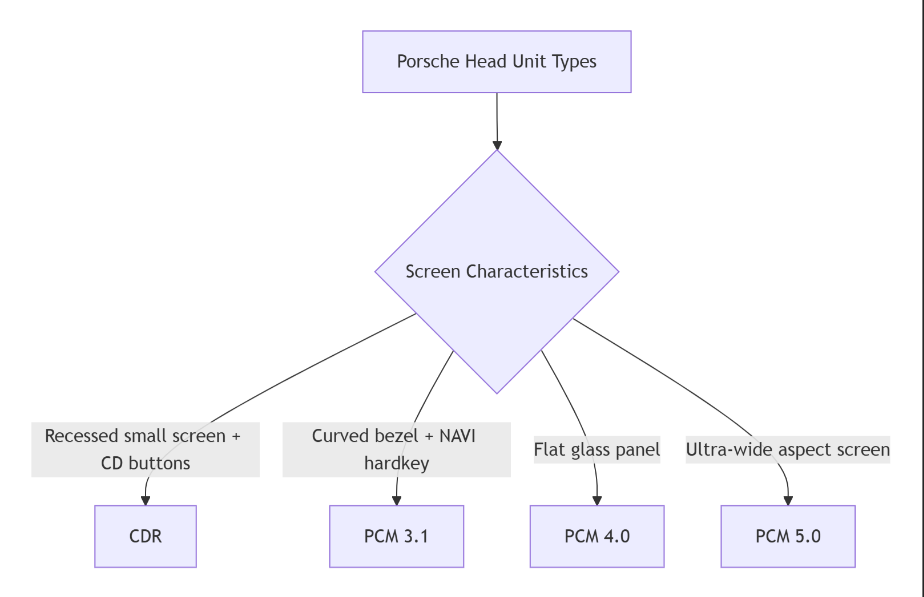

Quick Identification Cheat Sheet
System-Specific Compatibility Notes
Navigation Upgrades:
PCM 3.1: Requires MOST fiber optic decoder for CarPlay
CDR: Only compatible with UGODE CP200 retrofit module

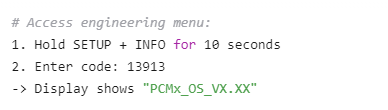

Software Verification:

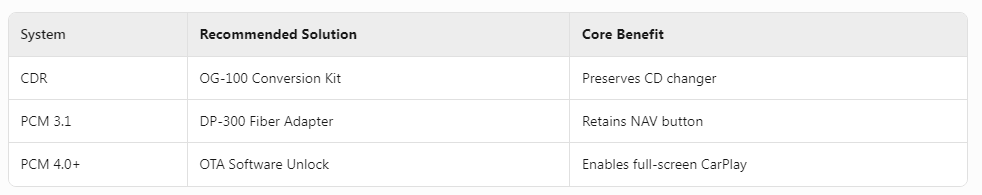

UGODE Upgrade Path Recommendations
Why Correct Identification Matters
Mismatched upgrades cause:
MOST fiber loop failures
Steering wheel control malfunctions
$2,300+ dealer reprogramming costs
Expert Tip: Always check PCM label inside glovebox (e.g. “PCM4 5NA” = PCM 4.0)
