Note: Be sure to disconnect the vehicle power before installation.

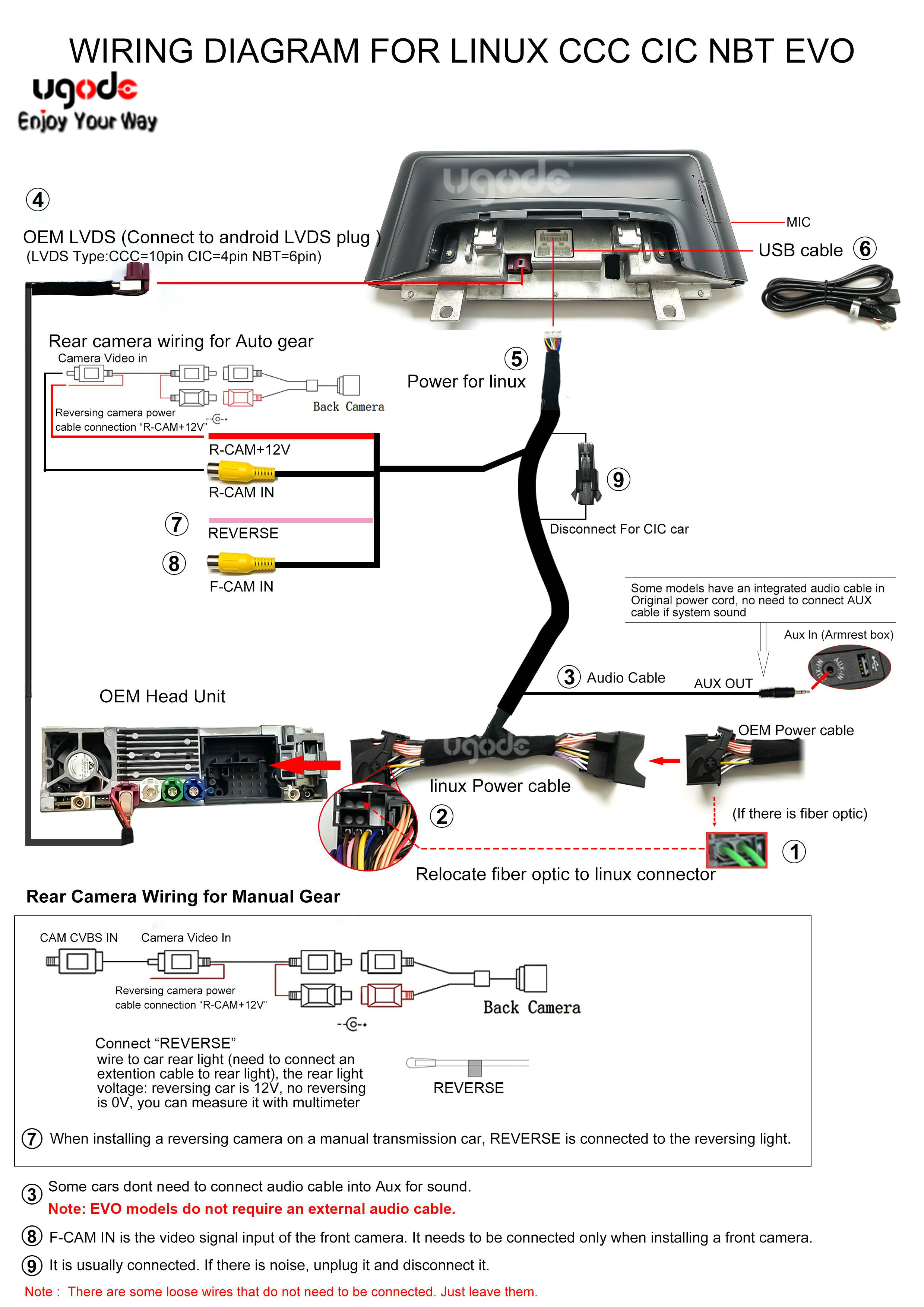

UGODE Linux screen BMW CCC, CIC, NBT, EVO Wiring Diagram
FAQ：
Q：Why is there no sound on my LINUX EVO screen?
A：1. Check to see if the fiber-optic cable is connected to the male connector on the main cable. Click here for details.
2. Audio from the EVO screen is transmitted via Bluetooth. Connect to the Linux Bluetooth device in the default Bluetooth interface, then return to the Linux state to hear the audio.
Video Demonstration：https://youtu.be/OKqIxPZCocQ
Post time: Jul-29-2026
