Note: Before installation, be sure to turn off the engine and remove the key to ensure the power source is disconnected.

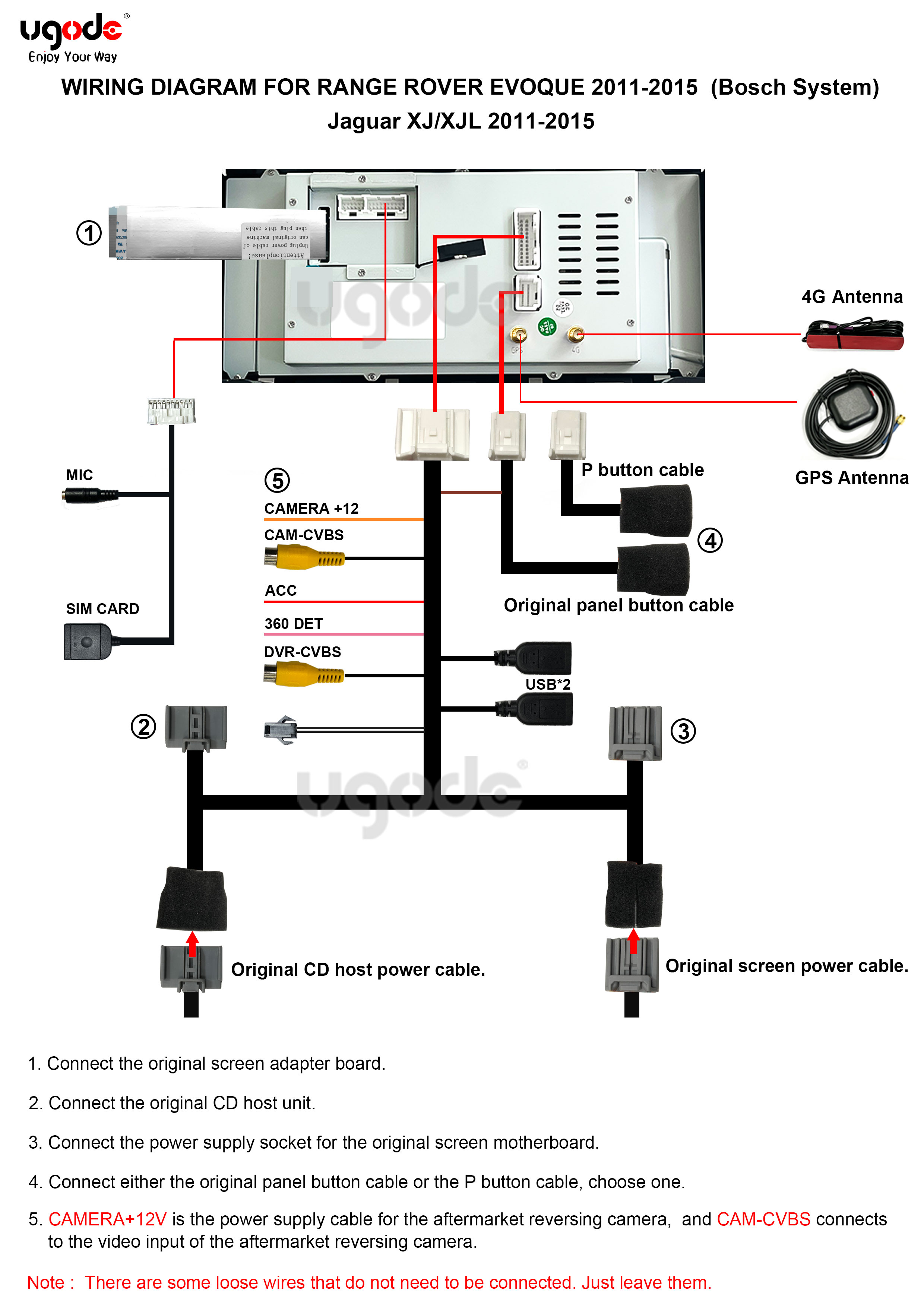

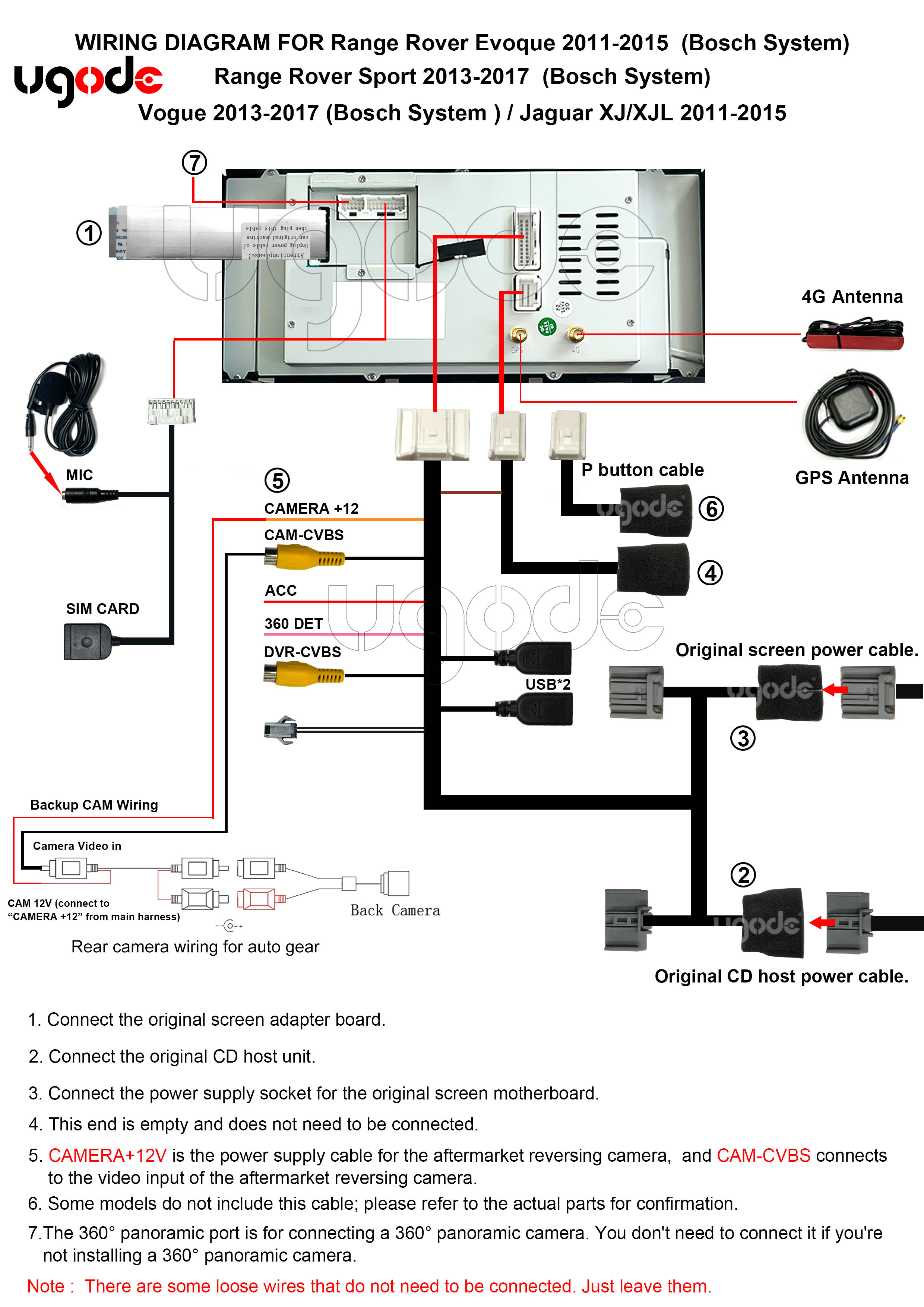

UGODE Android screen Range Rover Evoque 2011-2015(Bosch)，Jaguar XJ/XJL 2011-2015 Wiring Diagram
Note: During installation, remove the motherboard and adapter board from the original screen and install them into the metal box on the back of the Android screen. Click to view details.
Post time: Jan-10-2026
