Note: Be sure to disconnect the vehicle power before installation.

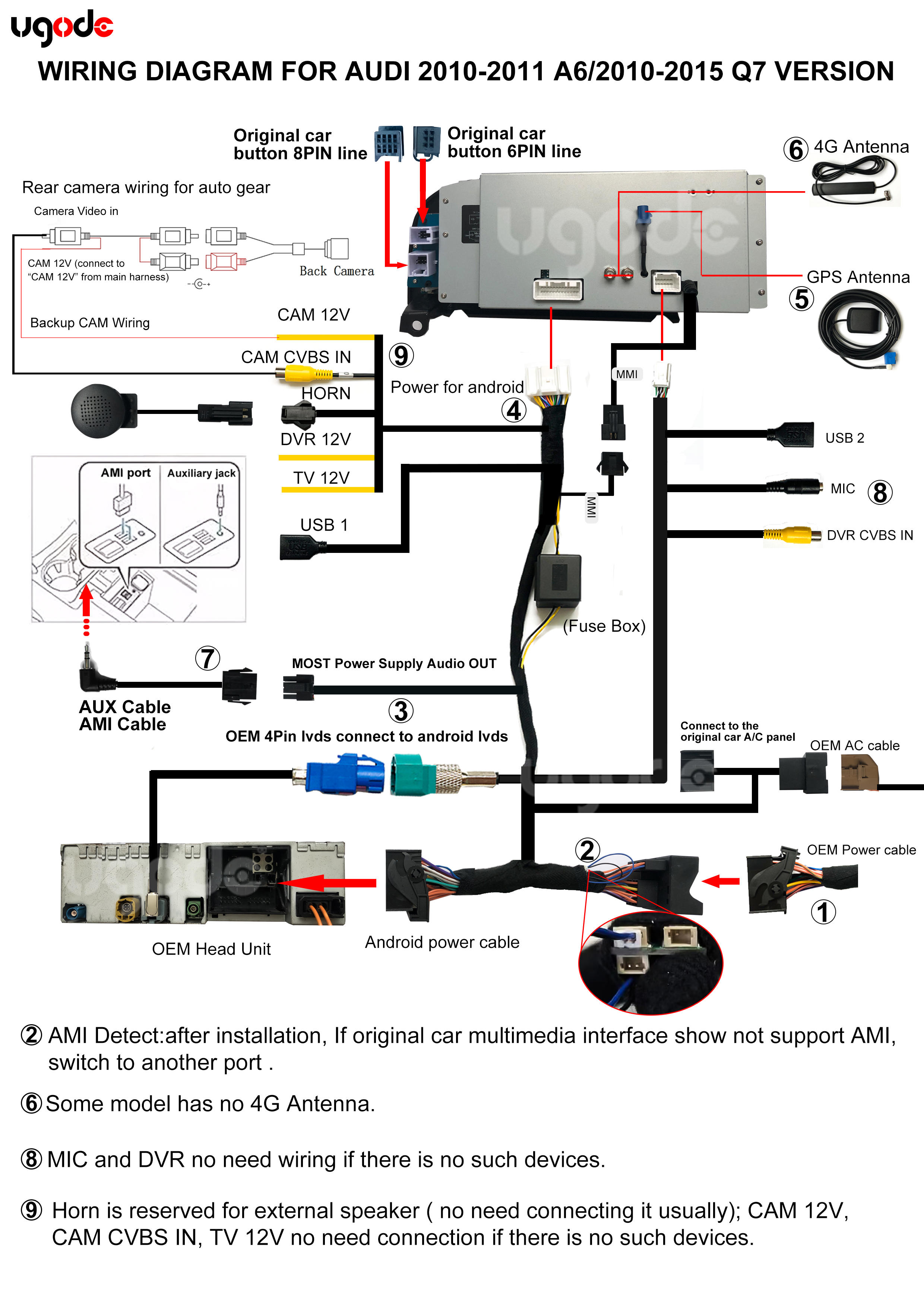

UGODE Android screen Audi A6 2010-2011, Q7 2010-2015 Wiring Diagram
FAQ:
Q：The original vehicle system is not displaying properly, is flashing, or has no signal.
A：Click here to view the solution.
Q：The original knob is not working.
A：Click here to view the solution.
Q：No sound for Android system
A：Click here to view the solution.
Post time: Nov-11-2025
