Note: Be sure to disconnect the vehicle power before installation.

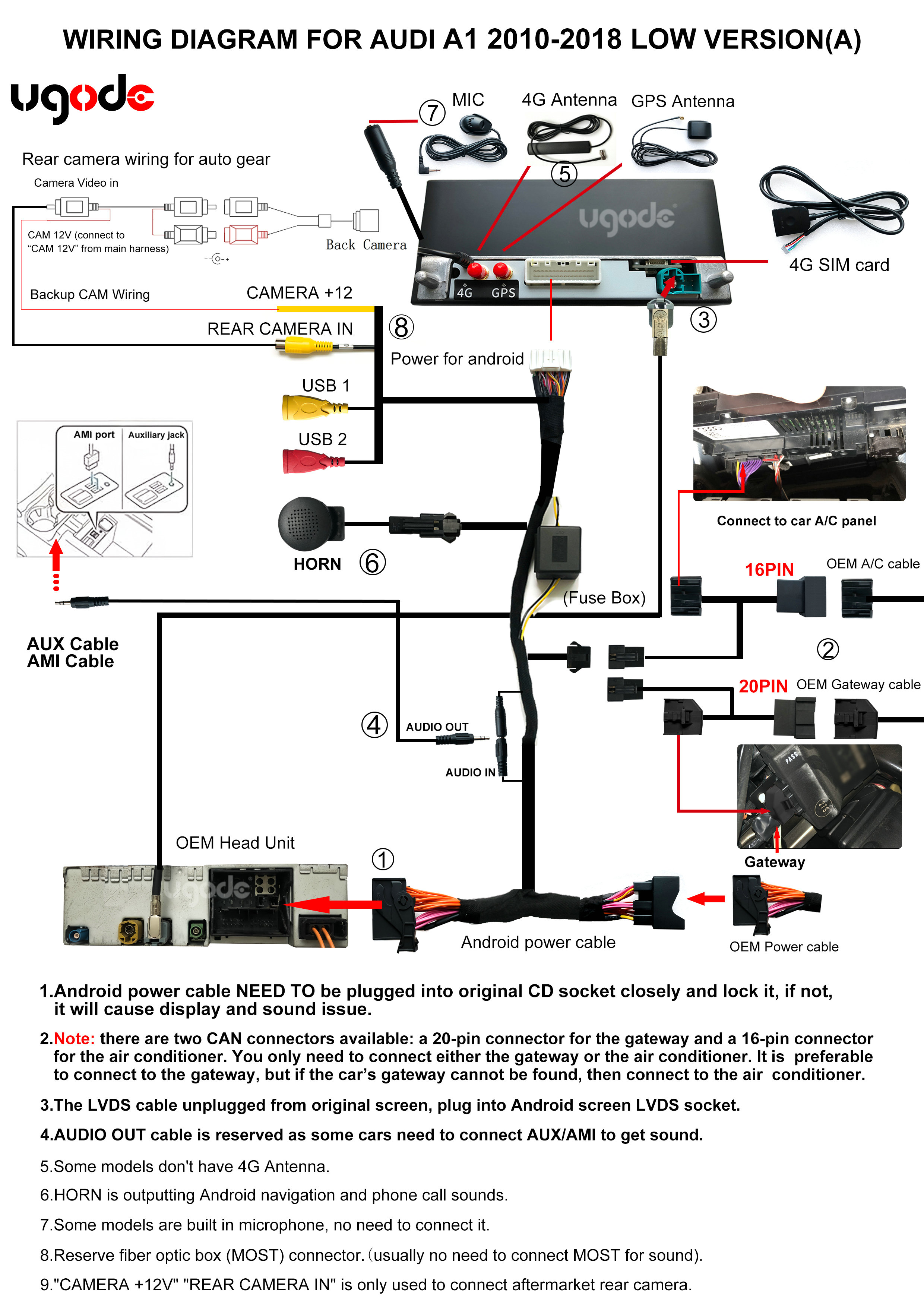

UGODE Android screen Audi A1 2010-2018 Low-end Wiring Diagram
FAQ:
Q：The original vehicle system is not displaying properly, is flashing, or has no signal.
The MMI knob is unusable in Android mode.
A：Click here to view the solution.
Q：No sound for Android system
A：Click here to view the solution.
Q：The rearview camera cannot be switched during reverse gear operation.
A：Click here to view the solution.
Q：Shut down the engine; the Android screen will not turn off.
A：Click here to view the solution.
Q：How to run navigation and the radio simultaneously.
A：Click here for solutions.
