Note: Be sure to disconnect the vehicle power before installation.

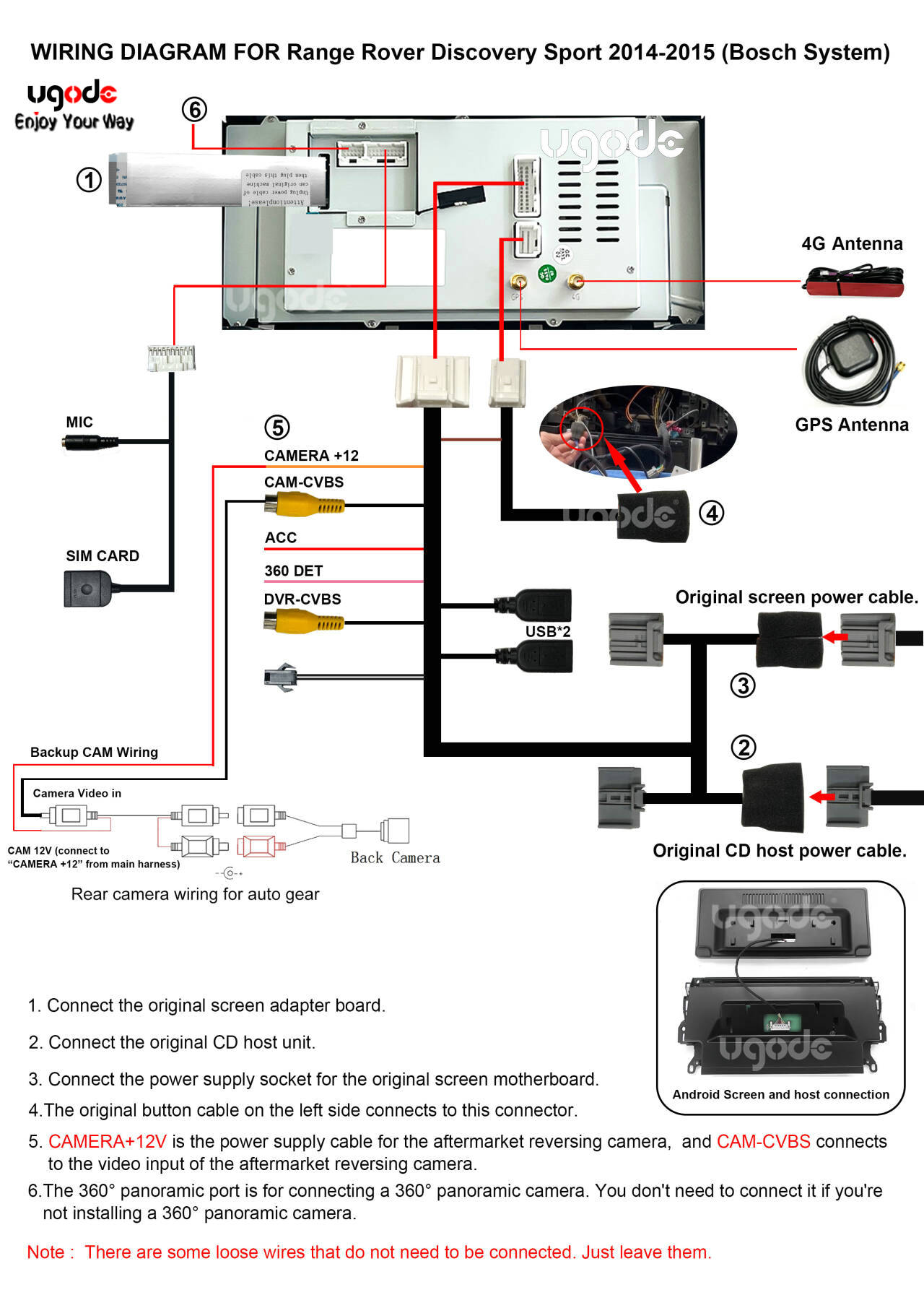

UGODE Android Screen 12.3-inch Range Rover Discovery Sport 2014-2015(Bosch System) Wiring Diagram
FAQ：
Q：How to solve the problem of a black screen and no display in the original system.
A：Make sure the ribbon cable connecting the original motherboard and the Android screen is properly connected and the clips are fastened securely.
https://youtube.com/shorts/Jfe78Vqy4vo?feature=share
Q：How to resolve the issue of abnormal display in the original system.
A：You need to select the correct display settings in Android Settings. Here is a video demonstration.
Q：Why is there no sound output on my Android device?
A：You need to access the original system, select “AUX Mode,” and then return to Android for audio to play. Here is a video tutorial.
