The Audi A6 models from 2012 to 2015 were divided into high-end and low-end versions, each with different cable connectors. Different cables were required for installation.
The differences are explained below.
Low-end configuration:
1.If the original vehicle version information is: RMC, then it is a low-end model

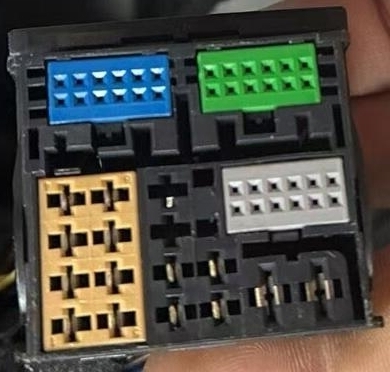

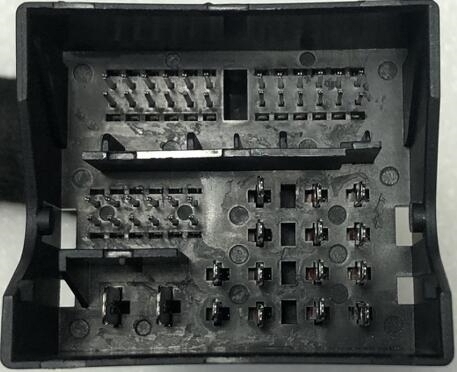

2. The cable plugs are also different in lower-spec models.（Note: The plug for the 2012-2015 Audi A6 low-end models is the same as that for the 2016-2018 Audi A6 models, but the cable definitions are different and they cannot be used interchangeably.）
High-end configuration:

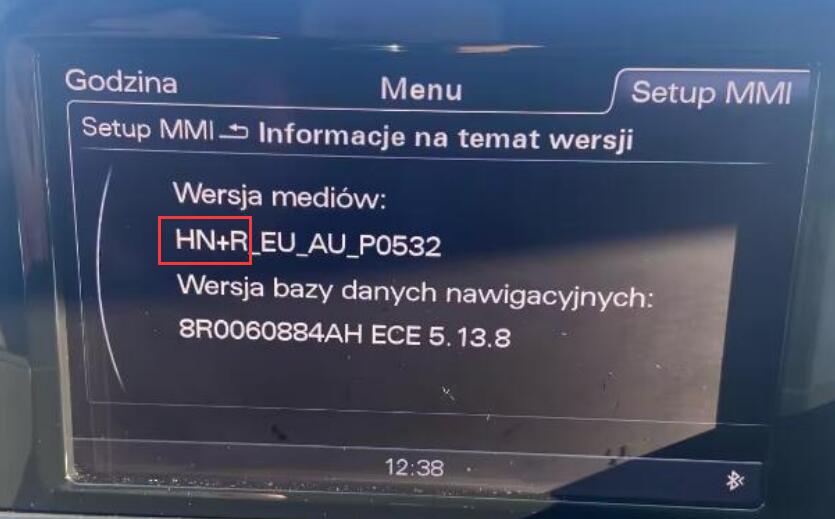

1.If the original vehicle version information is: HN+R, then it is a High-end model

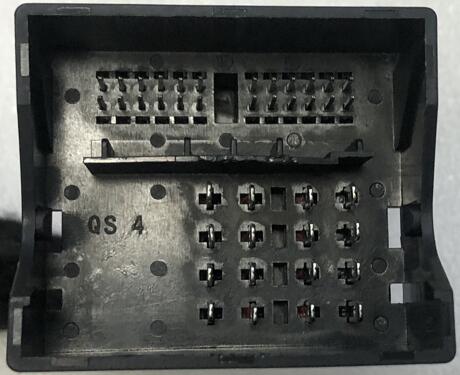

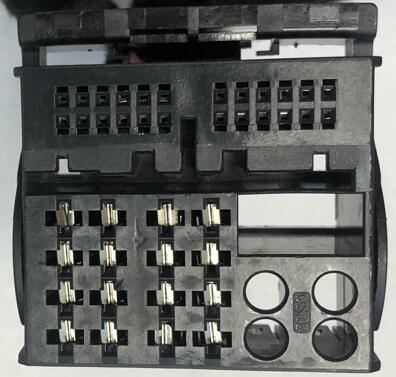

2.The cable plugs are also different in higher-spec models.
The Android screens for the UGODE Audi A6 2012-2015 are the same; only different cables are needed for installation.
Post time: Dec-10-2025
