Note: Be sure to disconnect the vehicle power before installation.

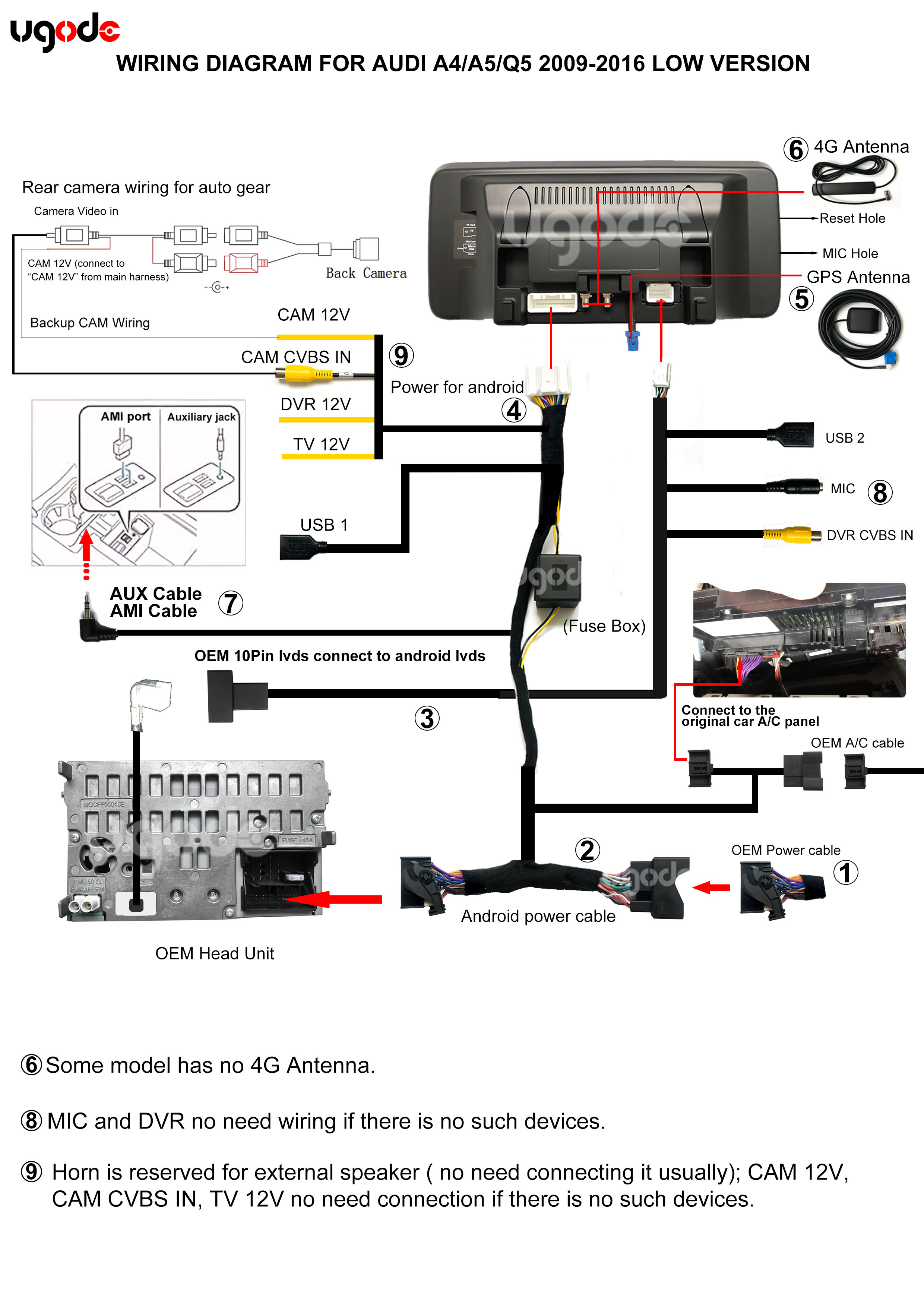

UGODE Android screen Audi A4/A5/Q5 2009-2016 Low Wiring Diagram
FAQ:
Q：The original vehicle system cannot display or flash correctly, or there is no signal.
A：Click here to view the solution.
Q：No sound for Android system
A：Click here to view the solution.
Q：The rearview camera cannot be switched during reverse gear operation.
A：Click here to view the solution.
Q：The knob on the original car CD panel cannot work in Android mode.
A：In the base models of Audi A4/A5/Q5 from 2009 to 2016, the CD player control knob can only be used in the original interface and cannot control the Android system.
Q：After installing the UGODE Android screen, where is the emergency light switch?
Q：Shut down the engine; the Android screen will not turn off.
A：Click here to view the solution.
Q：How to run navigation and the radio simultaneously.
A：Click here for solutions.
Post time: Oct-27-2025
