12.3inch LCD For Mercedes BENZ CLS Cluster Dashboard Instrument Full Screen speedometer
Mercedes BENZ CLS 2012-2017
0.Operation System Linux,
1 .Supports Crusier Control
2. Russian,English,German,French,Spanish,Italian,Korean,Japanese,Arabic ,Turkish, Menu
3. Can be Fitted Both on Auto and Manual Cars
4. Size: 12.3 inch HD IPS screen, 1920×720 Resolution
5. Can be installed on Both Gasoline and diesel Cars
6. Manual Car No Gears shows.You can Setup by yourself
7. Auto Car Gear Shows P/N/D/R
8. Oil Level Shows or Hiden
9. Car Door Show
10. RPM Shows 8000
11. Can change the Car color
12. Easy installation, no need cut nor modify wires, no need extra coding, plug and play
13.Functions: support orginal Miles/KM/Tyre Presure/Oil/water tempreture,oil pressure,fule
15.CPU:T5 1.5Ghz,Linux operation system (stable and can be used for many years)
16.consumption,car body balance and so on
17.Driving models:(Classical, Sport, off-road)
18.Working Voltage: 9V-16V
19.Working Current: 0.8A-1.5A
20.Standby Current: less than 3MA
| OS | Linux system |
| CPU | Renesas CPU |
| Screen | 12.3″ screen |
| Resolution | 1920*720 |
| Multi View | Support |
| Mode Switch | 9 modes |
| Warranty | 12 months |
| Chip | Renesas M2 |
| Type | Water Temp Temperature Gauge |
| Function | Built-in 2 ways Canbus/100KM accelerated test etc. |
| Installation | Easy Plug |
Some customers who purchased the UGODE Mercedes-Benz CLS Cluster Dashboard encountered problems during installation and did not know how to handle them.
Q：

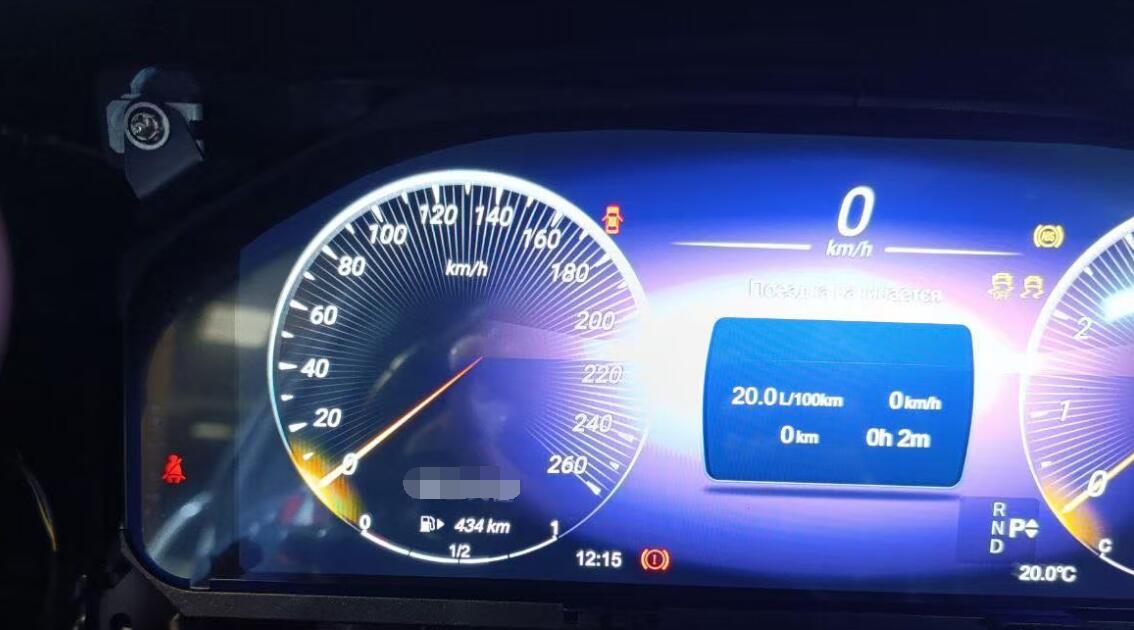

The original speedometer’s speedometer scale is 360, but after installing your digital cluster, the scale is only 260. How can I change it to a 360 scale?
A:

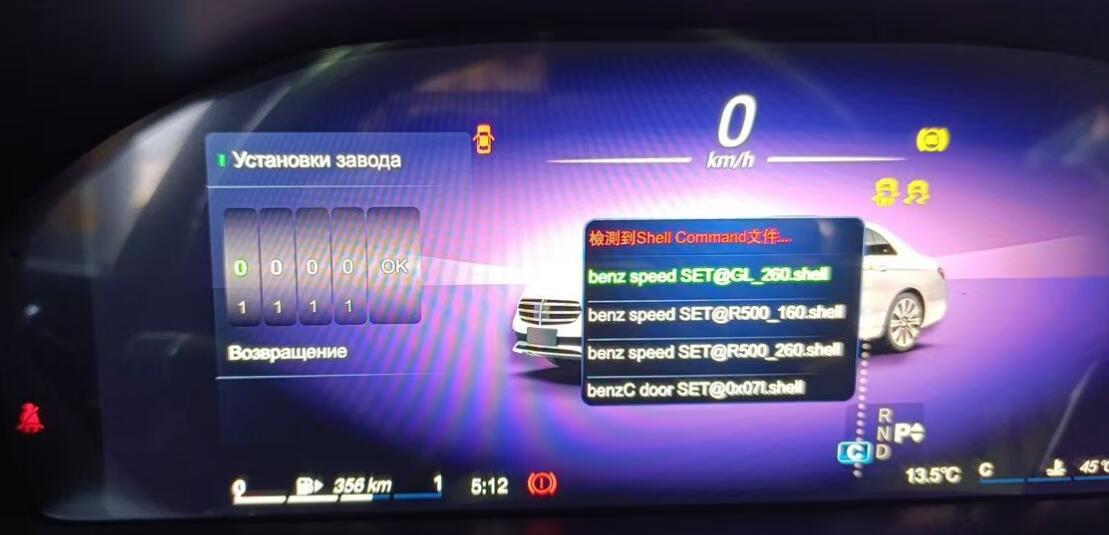

You need to access the factory settings of the digital trunking (password: 0169), and select 360 for Speed scale.

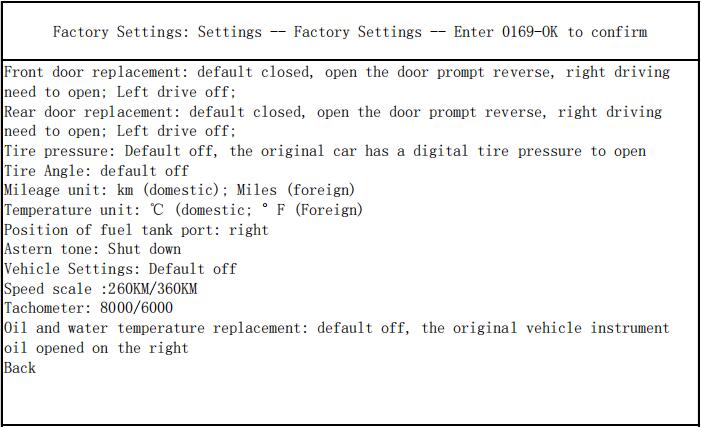

Factory Settings：Settings – Factory Settings – Enter 0169 – OK to confirm
