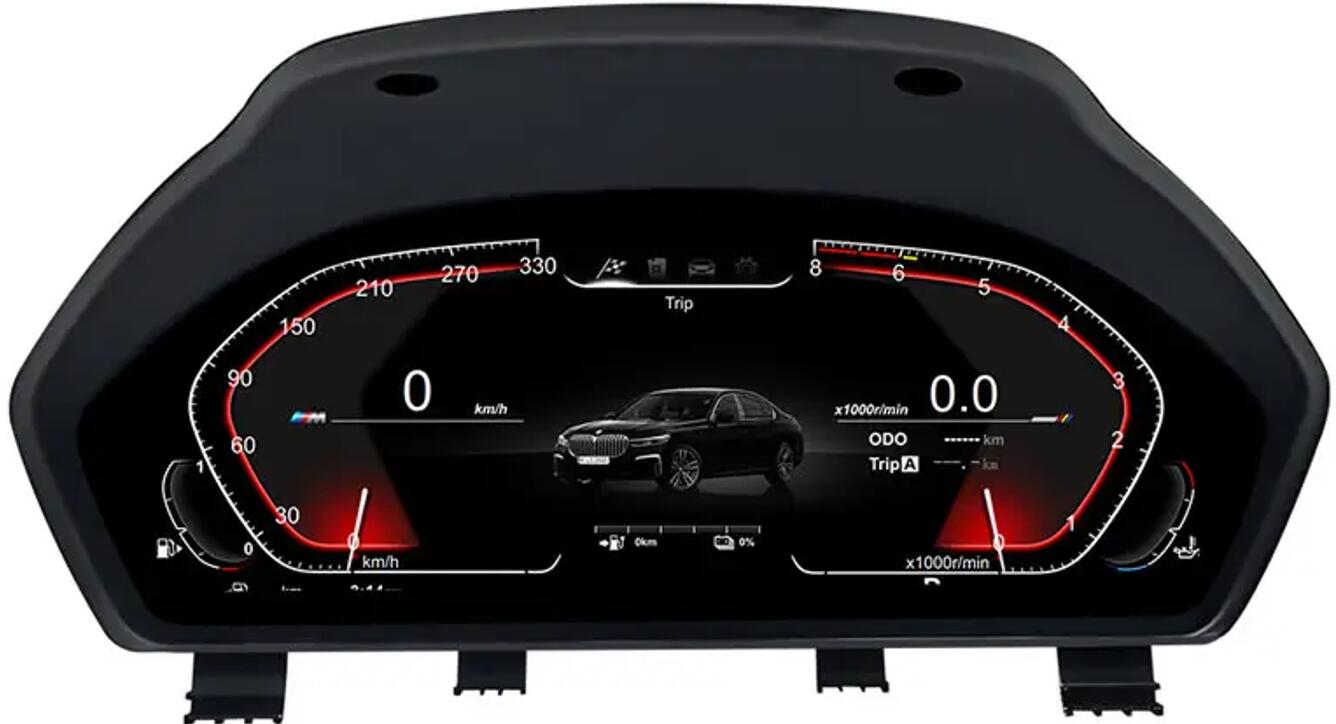

12.3inch LCD Digital Cluster Dashboard Instrument Speedometer For BMW 4Series M4 F32/F33/F36/F82/F83

BMW 4 series F32 F33 F36（2013-2020）NBT,EVO

0.Operation System Linux,
1 .Supports Crusier Control
2. Russian,English,German,French,Spanish,Italian,Korean,Japanese,Arabic ,Turkish, Menu
3. Can be Fitted Both on Auto and Manual Cars
4. Size: 12.3 inch HD IPS screen, 1920×720 Resolution
5. Can be installed on Both Gasoline and diesel Cars
6. Manual Car No Gears shows.You can Setup by yourself
7. Auto Car Gear Shows P/N/D/R
8. Oil Level Shows or Hiden
9. Car Door Show
10. RPM Shows 8000
11. Can change the Car color
12. Easy installation, no need cut nor modify wires, no need extra coding, plug and play
13.Functions: support orginal Miles/KM/Tyre Presure/Oil/water tempreture,oil pressure,fule
15.CPU:T5 1.5Ghz,Linux operation system (stable and can be used for many years)
16.consumption,car body balance and so on
17.Driving models:(Classical, Sport, off-road)
18.Working Voltage: 9V-16V
19.Working Current: 0.8A-1.5A
20.Standby Current: less than 3MA

Some customers who purchased the UGODE BMW 4 Series F36 digital instrument cluster have been using it for a long time but are not very familiar with certain features, so they reached out to us with questions.

Q：

Hi Jame,

Really appreciate your support and dash is awesome!

Just a quick question: the tire pressure is not displayed on the dash, is there a setting I need to adjust.
Not a big deal as the data is available via iDrive but would be nice if it also was available on the dash.

Thanks in advance for your effort and support!

Kind regards.

A：

Hello,

If your factory-installed instrument panel does not display tire pressure, our digital cluster will not display tire pressure either.
However, it will display a tire pressure warning.

Thank you.

A question from another customer.

Q：

How do you get the car display on the middle screen because thepicture shows there’s a car on the screen but when i installed minesthere wasn’t.

A：

Hello, you need to go to Settings and select the correct model and vehicle color.

Model settings：System Settings → Factory Settings → password（0188）→ [Vehicle Model Settings]—select your car’s model.

Vehicle Color Settings：System Settings → General Settings → [Vehicle Color]—select the color of your vehicle.

————————————————————————————————————————————————————

A question from another customer.

 Q：

Hello.

I am interested in the HUD version of this cluster for my 2015 BMW 435d xDrive Gran Coupé F36, VIN WBA4G11050G263204.

Before purchasing, could you please confirm in writing:
1.That it is fully compatible with the BMW F36 435d diesel.

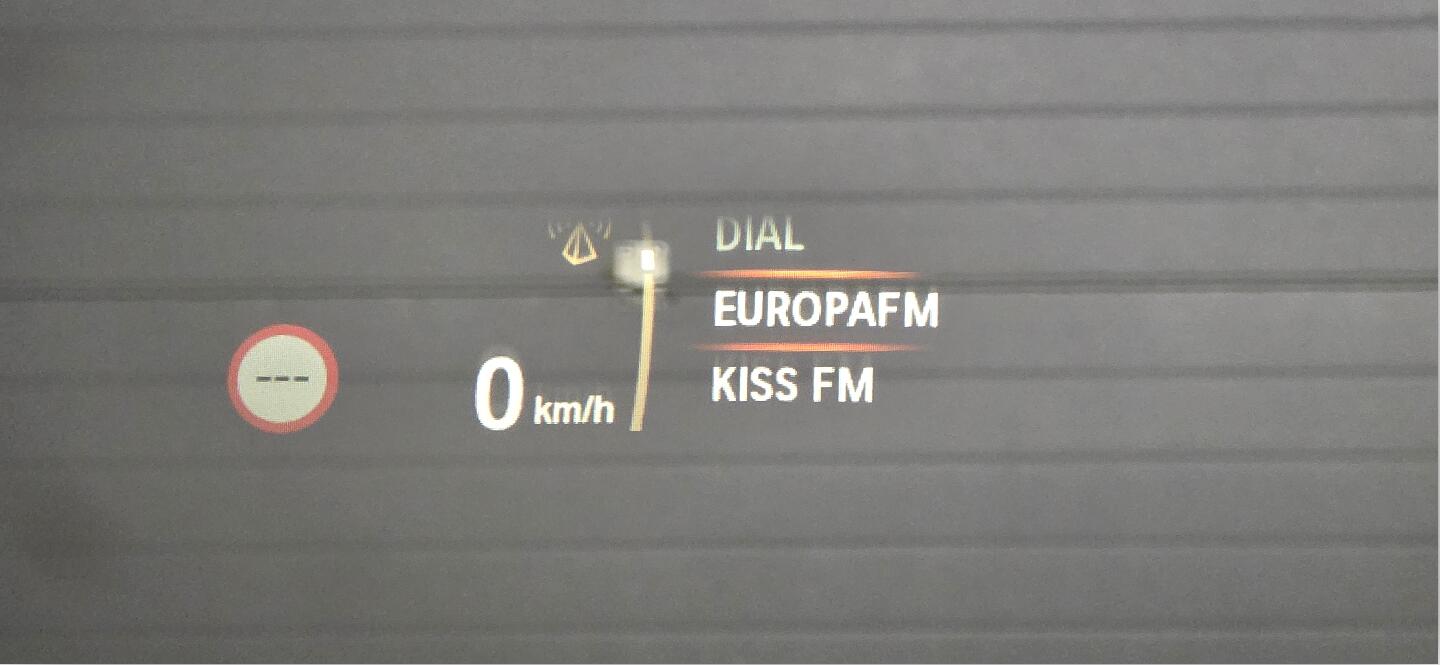

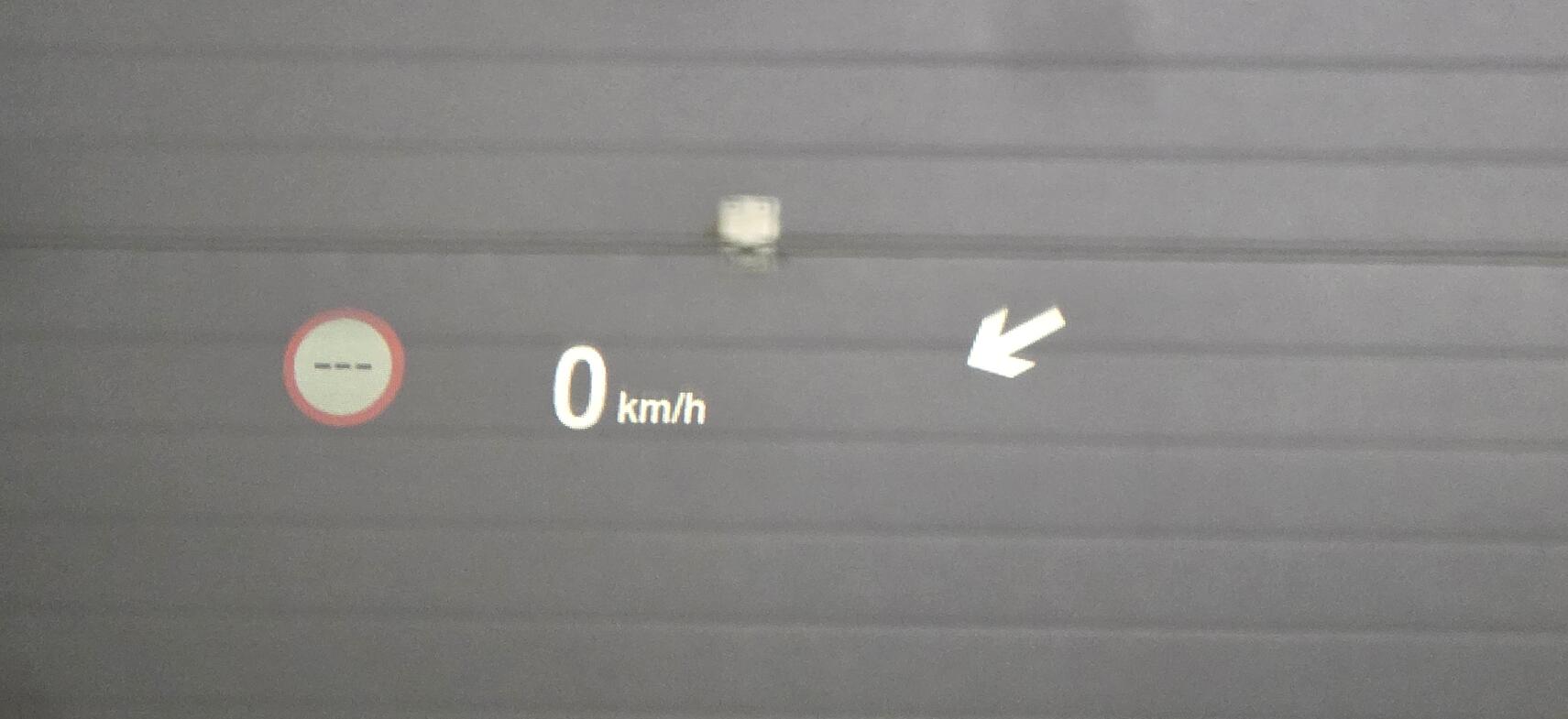

2.That the original BMW HUD remains fully functional, including speed, navigation directions, speed-limit information, cruise-control information and warning messages.
3.That it has a diesel-specific RPM scale and redline, not a fixed 8,000-rpm petrol scale.
4.That the original vehicle mileage is automatically read and continues increasing correctly without a tamper dot or mileage discrepancy in BMW diagnostics.
5.Will all original Check Control messages, tyre-pressure warnings, service information and vehicle fault warnings remain fully available?
6.Whether any coding is required for a car originally equipped with HUD.

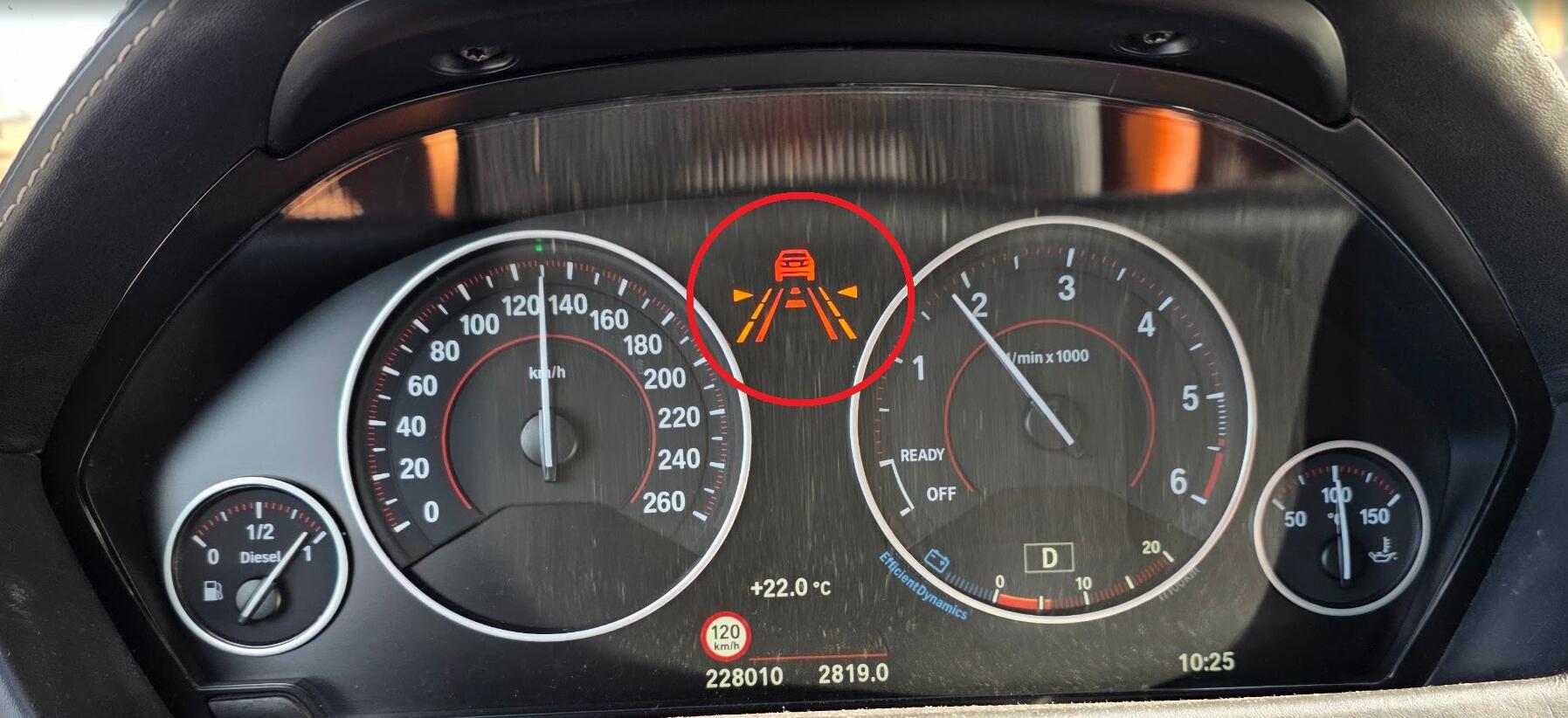

7.Will the cluster display all the original driver-assistance graphics from my car, particularly the Active Cruise Control information (set speed, detected vehicle and selected following distance), as well as Lane Departure Warning status and warnings, exactly as shown on the original instrument cluster? Please confirm whether these indications will appear both on the digital cluster and, where applicable, on the original HUD.

Thank you

A：

Hello,

Before purchasing, could you please confirm in writing:
1.That it is fully compatible with the BMW F36 435d diesel.
-Yes.
2.That the original BMW HUD remains fully functional, including speed, navigation directions, speed-limit information, cruise-control information and warning messages.
-Yes.
3.That it has a diesel-specific RPM scale and redline, not a fixed 8,000-rpm petrol scale.
-Yes.
4.That the original vehicle mileage is automatically read and continues increasing correctly without a tamper dot or mileage discrepancy in BMW diagnostics.
-Yes.
5.Will all original Check Control messages, tyre-pressure warnings, service information and vehicle fault warnings remain fully available?
-Yes.
6.Whether any coding is required for a car originally equipped with HUD.
-The mileage data is synced from the vehicle’s original instrument cluster and requires no configuration; however, the fuel tank capacity can be set.
7.Will the cluster display all the original driver-assistance graphics from my car, particularly the Active Cruise Control information (set speed, detected vehicle and selected following distance), as well as Lane Departure Warning status and warnings, exactly as shown on the original instrument cluster? Please confirm whether these indications will appear both on the digital cluster and, where applicable, on the original HUD.
-Any functions displayed by the original instrument cluster will also be displayed after installing our digital cluster (all original functions are retained).

Functions not available on the original instrument cluster will not be displayed on our digital cluster.

Thank you.
