10.25″ Volkswagen Passat 2011-2015 Cluster Dashboard Instrument Full Screen speedometer

Volkswagen Passat  2011-2015

Detail Specifications:

0.Operation System Linux,
1 .Supports Crusier Control
2. Russian,English,German,French,Spanish,Italian,Korean,Japanese,Arabic ,Turkish, Menu
3. Can be Fitted Both on Auto and Manual Cars
4. Size: 10.25 inch HD IPS screen, 1920×720 Resolution
5. Can be installed on Both Gasoline and diesel Cars
6. Manual Car No Gears shows.You can Setup by yourself
7. Auto Car Gear Shows P/N/D/R
8. Oil Level Shows or Hiden
9. Car Door Show
10. RPM Shows 8000
11. Can change the Car color
12. Easy installation, no need cut nor modify wires, no need extra coding, plug and play
13.Functions: support orginal Miles/KM/Tyre Presure/Oil/water tempreture,oil pressure,fule
15.CPU:T5 1.5Ghz,Linux operation system (stable and can be used for many years)
16.consumption,car body balance and so on
17.Driving models:(Classical, Sport, off-road)
18.Working Voltage: 9V-16V
19.Working Current: 0.8A-1.5A
20.Standby Current: less than 3MA

Note: Before removing the gauges, be sure to set the winter tire alarm and speed limit alarm to maximum, then turn these two functions off inside the multifunction speed limit.

https://youtu.be/WWXYJyIcAg4

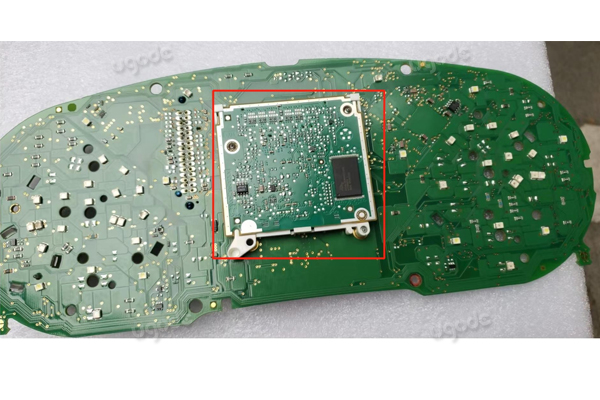

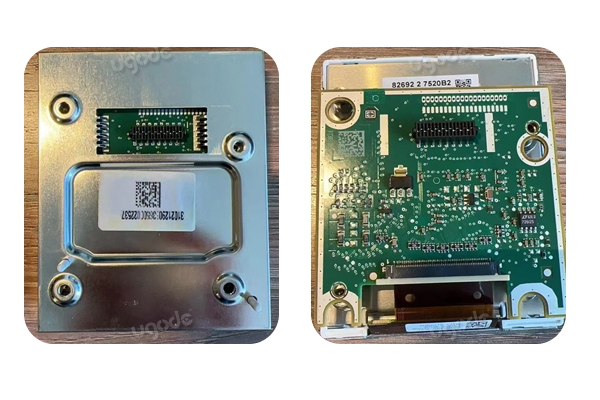

Note: Some Tiguan have a small wiring board on the back of the small screen of the mechanical instrument, which needs to be fixed on the board in the way as shown below and installed into the LCD instrument, omitting to install the small board will lead to the inaccuracy of the fuel level, and the instrument will report a malfunction.

https://youtu.be/2ZW8u8NPsfQ

LCD Instrumentation Installation Tutorial:

The instrumentation has two USB interface cables, one with a limited upgrade USB interface and one with a limited projection USB interface, which are placed inside the storage box in the lower left corner of the steering wheel.

https://youtu.be/8LgXeM_vtRg

After the PQ meter is installed and filled with fuel, if the pointer scale is not full, you need to set the fuel tank volume:After filling the fuel, run a few hundred meters, enter the driving data – refillable volume. When you click in, you can see the remaining fuel volume, fill in this data: Setting – Configuration Calibration – Fuel Tank Volume . Fill in this data: Settings – Configuration Calibration – Fuel Tank Volume . The refillable volume should be 0. At this time the scale is full.

https://youtu.be/jI2XK3aYr7c

Note: Physical lights are prohibited to be turned on inside the PQ platform settings, or else you will hit the turn signal without displaying it

https://youtu.be/tjJ7QmEUeWU

Car model:Small car model does not match the real car can be changed, setup-model selection, select and turn off the engine and lock the car for a few minutes.

Precautions

Installation in order to prevent the body static damage to the motherboard, disassembly before you can take the hand to hold the metal hose and wash your hands will be the body static discharge, disassembly should hold the PCB board edge, do not use your hands to directly contact with the electronic components

The original instrument panel speakers can not be removed, otherwise it will be reported as a combination of instrumentation malfunctions

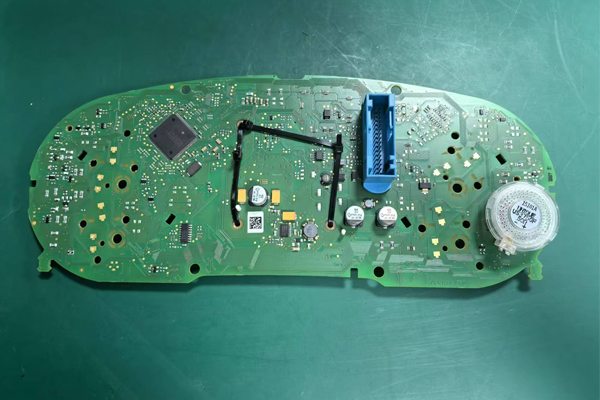

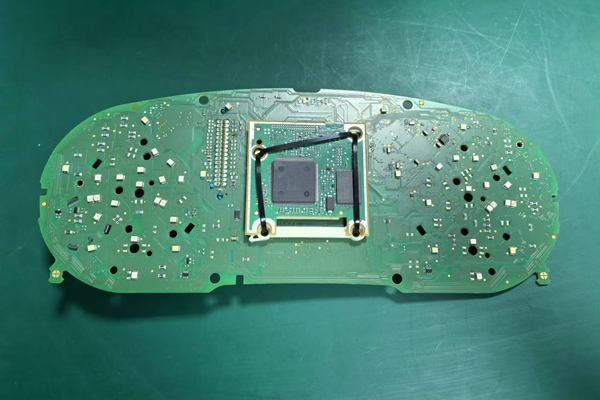

Part of the Touguan mechanical instrumentation of the back of the small screen there is also a small circuit board, which needs to be fixed in the way of the board according to the figure, installed in the LCD instrumentation,. Omitting the small board will cause the fuel level to be inaccurate, and the meter will report a malfunction.

Before removing the instrument, make sure to set the winter tire alarm and speed limit alarm to maximum, and then turn off these two functions in the multi-function speed limit.
